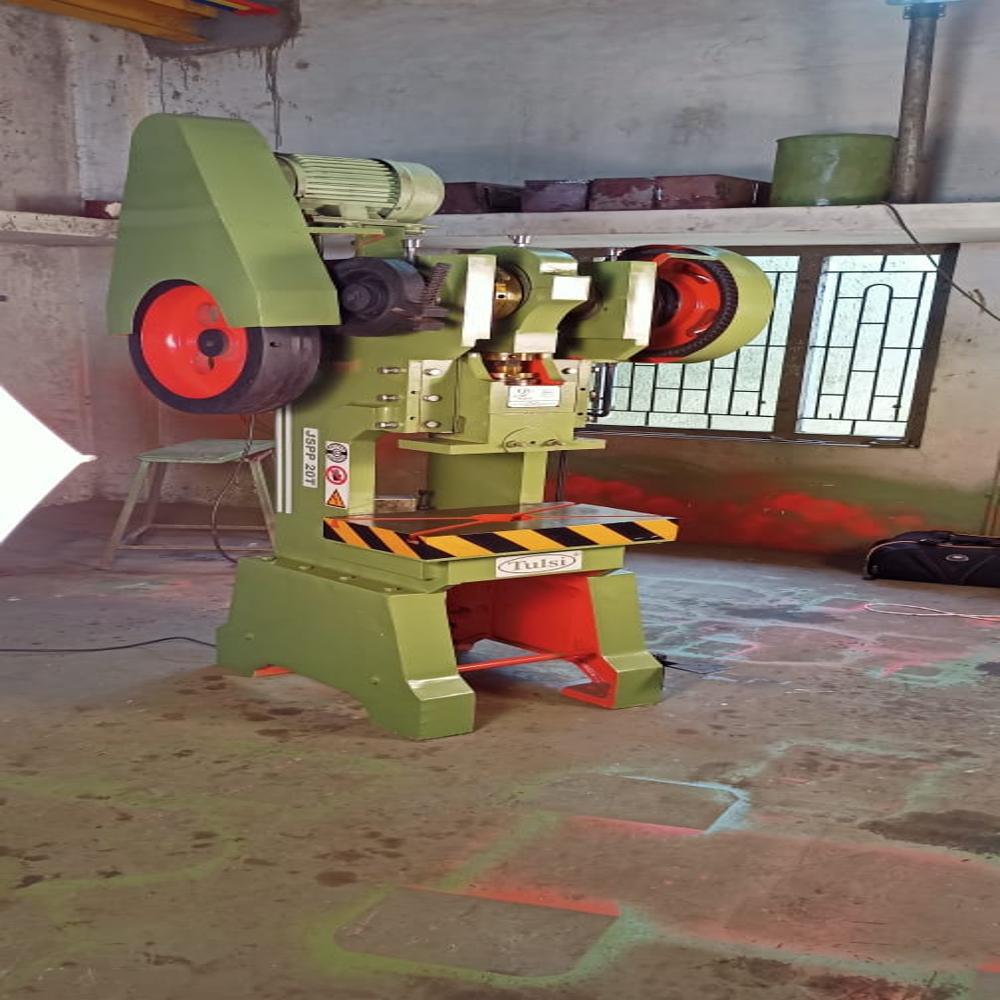

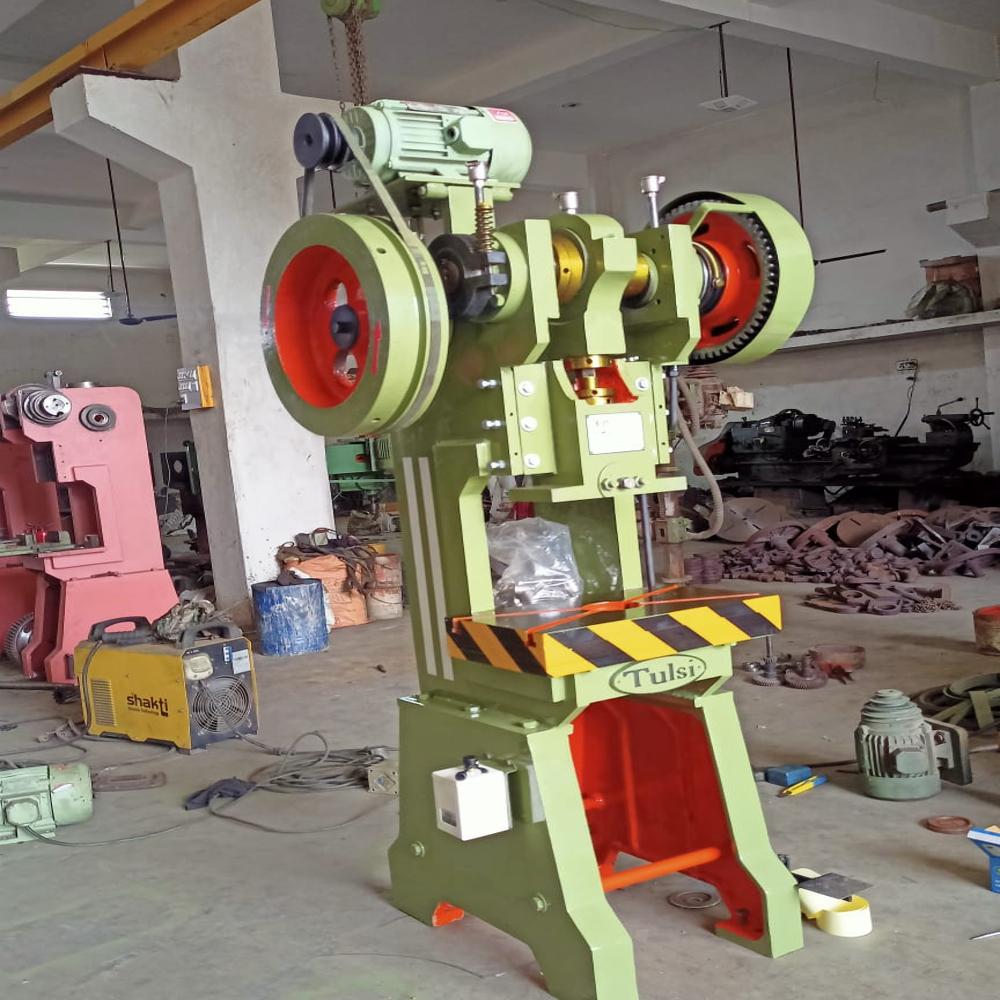

C Type Power Press

Name: C Type Power Press
Brand: VIKAS MACHINERY AND AUTOMOBILES
Price: 55000.0 INR
Availability: InStock

55000.0 INR/Ton

Get a Price/Quote

Product Details:

Drive Mechanical
Operating Temperature 5C - 50C
Noise Level Below 85 dB
Motor Power 2 HP - 20 HP
Model No Varies as per Ton Capacity
Frequency 50 Hz
Features Robust Construction, High Precision, Low Maintenance
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

C Type Power Press Price And Quantity

Price 55000.0 INR/Ton
Minimum Order Quantity 1

Operator Panel Simple Interface with Emergency Stop
Bolster Thickness 45 mm - 90 mm
Shut Height 350 mm - 650 mm
Bed Size 400 mm x 600 mm and above
Throat Depth 200 mm - 400 mm
Installation On-site Installation Support Available
Design Ergonomic for Low Fatigue Working
Accessories Die Set, Guard, Foot Switch, Tool Kit
Stroke Length Variable (e.g., 90 mm - 200 mm)
Ram Adjustment Up to 60 mm
Electronics Contactors, Overload Relay, MCB Panel
Slide Adjustment Manual/Automatic
Material Suitable Mild Steel, Aluminum, Copper, and Other Sheet Metals
Foundation Required Depends on size & tonnage
Main Motor Speed 1440 RPM
Finish Industrial Grade Paint and Rust Protection
Safety Features Mechanical Interlocks, Overload Protection, Emergency Stop

C Type Power Press Product Specifications

Production Capacity Up to 30 Strokes Per Minute
Operating Type Automatic
Cooling System Air Cooled
Frame Type C Frame
Power Rating As per model (e.g., 5 kW - 15 kW)
Machine Type Power Press
Accuracy 0.1 mm
Dimension (L*W*H) Varies by model (e.g., 1500x950x2000 mm)
Pressure Available from 10 Ton to 300 Ton
Weight (kg) Ranging from 1000 kg to 9000 kg
Usage & Applications Sheet Metal Punching, Bending, Forming, Blanking
Control System Push Button / Foot Pedal
Voltage 415 V (Three Phase)
Model No Varies as per Ton Capacity
Frequency 50 Hz
Drive Mechanical
Power 2 HP to 20 HP (Based on Model)
Power Source Electricity
Technology Mechanical
Motor Power 2 HP - 20 HP
Noise Level Below 85 dB
Operating Temperature 5C - 50C
Lubricating System Centralized Automatic / Manual
Color Green
Surface Treatment Painted
Product Type C Type Power Press
Features Robust Construction, High Precision, Low Maintenance

Operator Panel Simple Interface with Emergency Stop
Bolster Thickness 45 mm - 90 mm
Shut Height 350 mm - 650 mm
Bed Size 400 mm x 600 mm and above
Throat Depth 200 mm - 400 mm
Installation On-site Installation Support Available
Design Ergonomic for Low Fatigue Working
Accessories Die Set, Guard, Foot Switch, Tool Kit
Stroke Length Variable (e.g., 90 mm - 200 mm)
Ram Adjustment Up to 60 mm
Electronics Contactors, Overload Relay, MCB Panel
Slide Adjustment Manual/Automatic
Material Suitable Mild Steel, Aluminum, Copper, and Other Sheet Metals
Foundation Required Depends on size & tonnage
Main Motor Speed 1440 RPM
Finish Industrial Grade Paint and Rust Protection
Safety Features Mechanical Interlocks, Overload Protection, Emergency Stop

C Type Power Press Trade Information

Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Delivery Time 1 Week
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Middle East, Asia, Africa
Main Domestic Market All India

Product Description

Salient Features:

Minimum deflection
Accurate alignment
High accuracy
Compact design
High operational accuracy
Capacity : 5 TON to 500 TON

Description	SCPP3	SCPP5	SCPP10	SCPP20	SCPP30	SCPP50	SCPP75	SCPP100	SCPP150	SCPP200	SCPP250
Ton Capacity	3	5	10	20	30	50	75	100	150	200	250
Crank Shaft dia	48	57	60	76	83	102	114	134	152	158	165
Stroke Adjustment	6-25	6-25	6-25	13-63	13-75	13-102	13-114	13-127	13-140	13-152	13-165
Stroke Length	25	25	51	63	75	102	114	127	140	152	165
Slide Adjustment	12	19	25	40	40	50	60	60	70	70	75
Bed Size LXW	152- 103	178- 305	254- 406	305- 503	365- 558	406- 660	558- 813	635- 914	685- 985	738- 1016	778- 106
Hole in Bed	51	63	76	89-108	102-127	127-152	178-203	191-216	216-241	229-254	229-254
Hole in Ram	19	25.4	25.4	31.75	38.1	44.75	50.8	57.18	63	36	70
Distance Bed to Ram	127	171	203	254	292	356	380	406	547	495	519
Distance Bolster Plate to Ram	165	214	254	314	362	441	470	496	557	595	629
Stroke Per Minute	80	80	80	55	40	30	30	30	30	30	25
Table Height	508	687	725	762	762	813	813	890	890	890	890
Fly Wheel Diameter	330	381	406	533	609	700	810	924	1016	1150	1320
Geared Diameter	254	280	355	460	533	635	812	864	1016	1150	1320
Motor RPM	0.5	0.5	1	2	3	5	7.5	10	15	20	25
Approx Weight in kgs.	150	275	500	1000	1300	2400	4000	5000	5800	9000	11000
Overall Dimension	625x625x1000	940x940x1300	1100x1100x1600	1200x1200x1850	1300x1300x2000	1500x1500x2500	1700x1700x3000	1800x1800x3100	2000x2000x3200	2200x2100x3300	2300x2200x2400

Versatile Performance & Applications

This C Type Power Press is engineered for diverse sheet metal applications, handling a wide range of materials such as mild steel, aluminum, copper, and more. Its variable stroke length, substantial bed size, and adjustable ram settings allow for efficient punching, forming, bending, and blanking processes, making it valuable for manufacturers, fabricators, and workshops alike.

Safety & Operational Efficiency

Safety is prioritized with features like mechanical interlocks, overload protection, emergency stops, and robust guarding. The operator panel is simple to navigate, and the inclusion of foot switches and remote controls enhances ease of use. With a noise level below 85 dB and ergonomic design, the machine ensures user comfort over extended shifts.

Durable, Reliable Construction

Built with a heavy-duty C frame, the power press is painted with industrial-grade coatings to ensure rust protection and lasting durability. The centralized automatic or manual lubrication system further minimizes maintenance, supporting reliable long-term operation. Installation support and a comprehensive accessories kit are provided for swift setup and smooth operation.

FAQ's of C Type Power Press:

Q: How do I choose the right C Type Power Press model for my production needs?

A: Selecting the ideal model depends on required tonnage, bed size, and the type of metal and thickness you'll be working with. You should also consider stroke length, shut height, and any specific accessories. Our team can guide you in choosing the most suitable configuration for your application.

Q: What sheet metal materials can this power press handle?

A: This machine is suitable for processing mild steel, aluminum, copper, and various other sheet metals, offering flexibility for a wide range of manufacturing and fabrication tasks.

Q: When is the machine installation provided, and what support is available?

A: On-site installation support is available upon delivery. Our technicians assist with foundation requirements (dependent on machine size and tonnage), setup, and initial operational guidance to ensure smooth commissioning.

Q: Where can this power press be used most effectively?

A: The C Type Power Press is well-suited for metalworking plants, manufacturing facilities, workshops, and industrial units needing precise and repetitive sheet metal operations, such as punching, forming, and bending.

Q: What safety features are included in the machine?

A: The machine is equipped with mechanical interlocks, overload protection, an emergency stop mechanism, and full-length guarding to ensure high safety standards for operators during all phases of operation.

Q: How is the machine operated and what control options are available?

A: Operation is managed through a user-friendly push button or foot pedal control panel, featuring a simple interface with emergency stop. Slide and lubricating systems offer both automatic and manual adjustment for convenience.

Q: What are the key benefits of using this C Type Power Press?

A: Major advantages include high production capacity (up to 30 strokes per minute), superior accuracy (up to 0.1 mm), robust construction, ergonomic design for low fatigue, low maintenance needs, and comprehensive safety systems.
