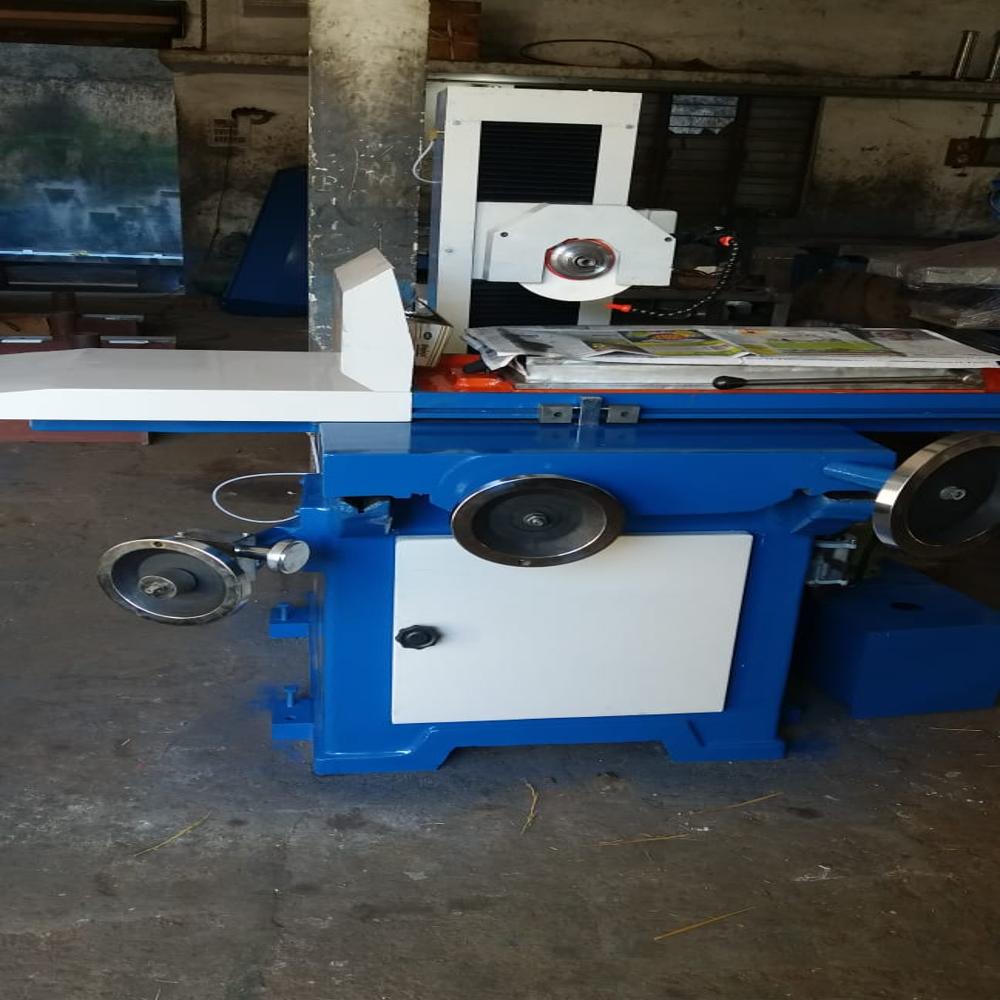

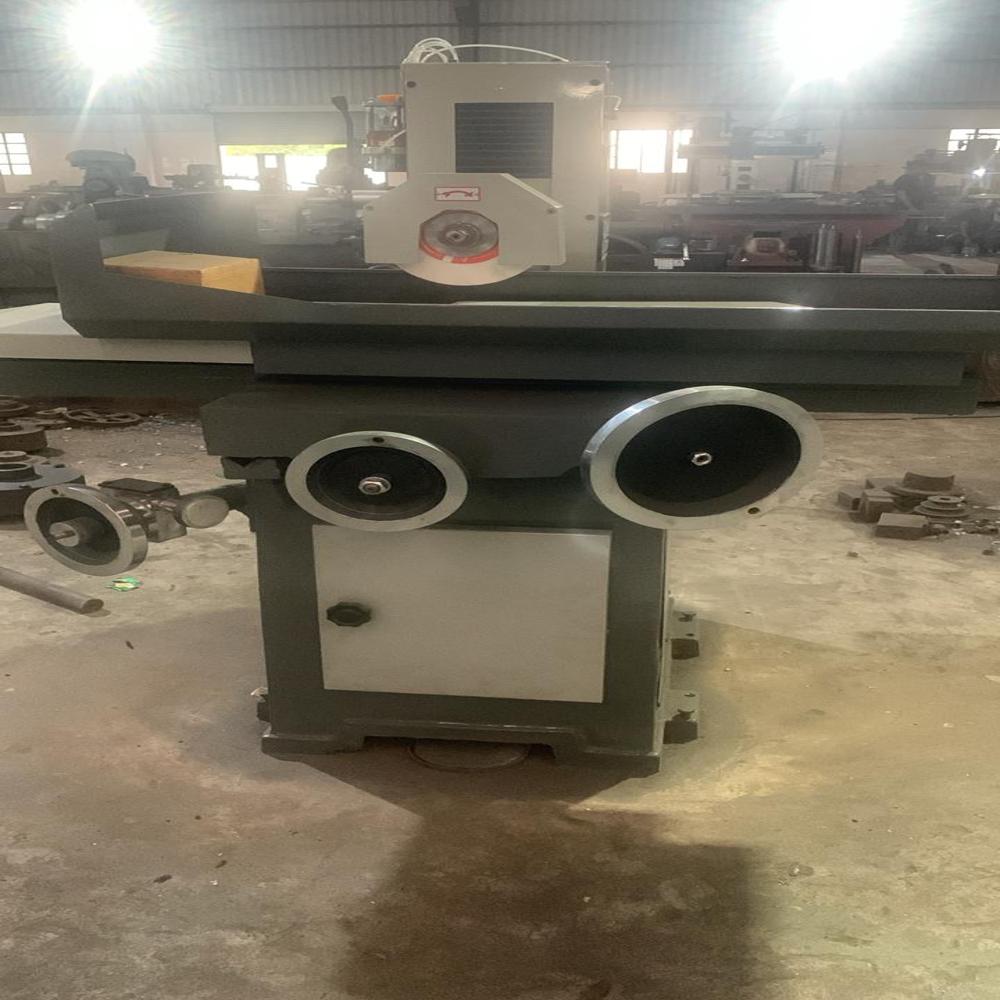

Surface Grinder
219500.0 INR/Set
Product Details:
- Accuracy 0.01 mm
- Frequency 50 Hz
- Power Rating Main Motor: 2 kW
- Machine Type Surface Grinding Machine
- Features Precision Grinding, Rigid Construction, Easy Operation
- Production Capacity Depend on operation cycle (Standard: 1-2 pcs/min)
- Drive Belt Driven
- Click to view more
X
Surface Grinder Price And Quantity
- 219500.0 INR/Set
- 1 Set
Surface Grinder Product Specifications
- Main Motor: 2 kW
- Surface Grinding Machine
- Hydraulic (variable based on application)
- Electric
- Precision Grinding, Rigid Construction, Easy Operation
- Depend on operation cycle (Standard: 1-2 pcs/min)
- Belt Driven
- Approx. 1800 x 1200 x 1600 mm
- 0.01 mm
- 50 Hz
- 1700 kg
- Semi-Automatic
- Metal Surface Grinding, Tool Room Work, Precision Engineering
- 2 HP / 1440 rpm
- Precision Ground / Painted Finish
- SG-618/SG-1020 (varies by supplier)
- Heavy Duty Cast Iron
- Surface Grinder Machine
- 2 HP - 5 HP (varies by model)
- Grey & Bluish White
- Manual/Automatic
- Hand-operated/Panel Control
- < 70 dB
- 5C to 45C
- Coolant Tank with Pump
- Automatic Lubrication
- 415 V AC, 3 Phase
- Steel, Cast Iron, Aluminum, Tool Steel
- Optional
- Available
- 2 HP
- 2800 rpm
- Dust Extraction Unit, Magnetic Chuck, Inbuilt DRO (Digital Read Out)
- 180 x 13 x 31.75 mm
- 200 mm
- Grinding Wheel, Work Light, Coolant Equipment, Tools
- Overload Protection, Emergency Stop Button
- 600 x 180 mm
- 0.005 mm/Graduation
- 40 Litre
- 275 mm
- 620 mm
- Table Speed: 3~25 m/min
Surface Grinder Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 1 Week
- No
- Within a certain price range free samples are available
- Asia, Middle East, Africa
- All India
Product Description
Our company provides Precision Surface Grinder that is famous for its efficient and smooth working. It is easy to work with and is suitable for various uses. It is provided to the consumers at very reasonable prices.
Features
- Durable
- High strength
- Easy to operate
Why our Precision Surface Grinder?
- Used in various industries
- Good finishing
- Efficient performance
Unmatched Accuracy and Efficiency
The Surface Grinder offers high precision with its 0.01 mm accuracy and smooth table movement at speeds ranging from 3 to 25 m/min. Its automatic lubrication and efficient cooling system ensure optimal performance for rigorous metal grinding across varied applications in tool rooms, workshops, and precision engineering facilities.
Robust Construction for Longevity
Built with a heavy-duty cast iron frame, this machine is designed to withstand continuous operation while minimizing vibrations. The precision ground and painted finish not only ensure durability but also simplify maintenance, making it an ideal choice for distributors, exporters, suppliers, traders, and wholesalers across India.
FAQ's of Surface Grinder:
Q: How does the Surface Grinder ensure precise and uniform metal surface finishes?
A: The Surface Grinder achieves high precision through its finely graduated wheel head vertical feed (0.005 mm per graduation) and rigid cast iron construction. The spindle motor operates at 2800 rpm, allowing consistent, smooth grinding results across a range of metallic materials, ensuring uniform surface finishes for demanding engineering applications.Q: What is the recommended process for operating the Surface Grinder safely and efficiently?
A: Before operating, ensure the workpiece is securely clamped, choose the suitable feed mode (manual or auto), and set the proper table speed and grinding height. Always activate the coolant and check safety features such as overload protection and emergency stop buttons. Proper setup maximizes efficiency and safety during grinding cycles.Q: When should the coolant and lubrication systems be maintained or refilled?
A: The machine features an automatic lubrication system and a 40-litre coolant tank. Both systems should be checked before each operational shift. Refill coolant when the level drops significantly and inspect the automatic lubrication to ensure all moving parts receive adequate oil, preventing premature wear and ensuring smooth operation.Q: Where can this Surface Grinder be installed for optimal performance?
A: Install the Surface Grinder in a clean, well-ventilated workshop with an operating temperature between 5C and 45C. Ensure it stands on a level, solid foundation to reduce vibrations and enhance grinding accuracy, making it suitable for tool rooms, factories, and precision engineering environments.Q: What materials and types of workpieces can be processed with this Surface Grinder?
A: This machine is optimized for grinding a variety of metals including steel, cast iron, aluminum, and tool steel. It is suitable for metal surface grinding, tool room work, and precision engineering components, supporting applications that require tight tolerances and high surface quality.Q: How does the optional magnetic chuck enhance the grinding process?
A: The optional magnetic chuck enables quick and secure fixation of ferromagnetic workpieces, reducing setup time and increasing precision. This attachment streamlines the grinding process, especially for batch production or when frequent workpiece changes are necessary.Tell us about your requirement
