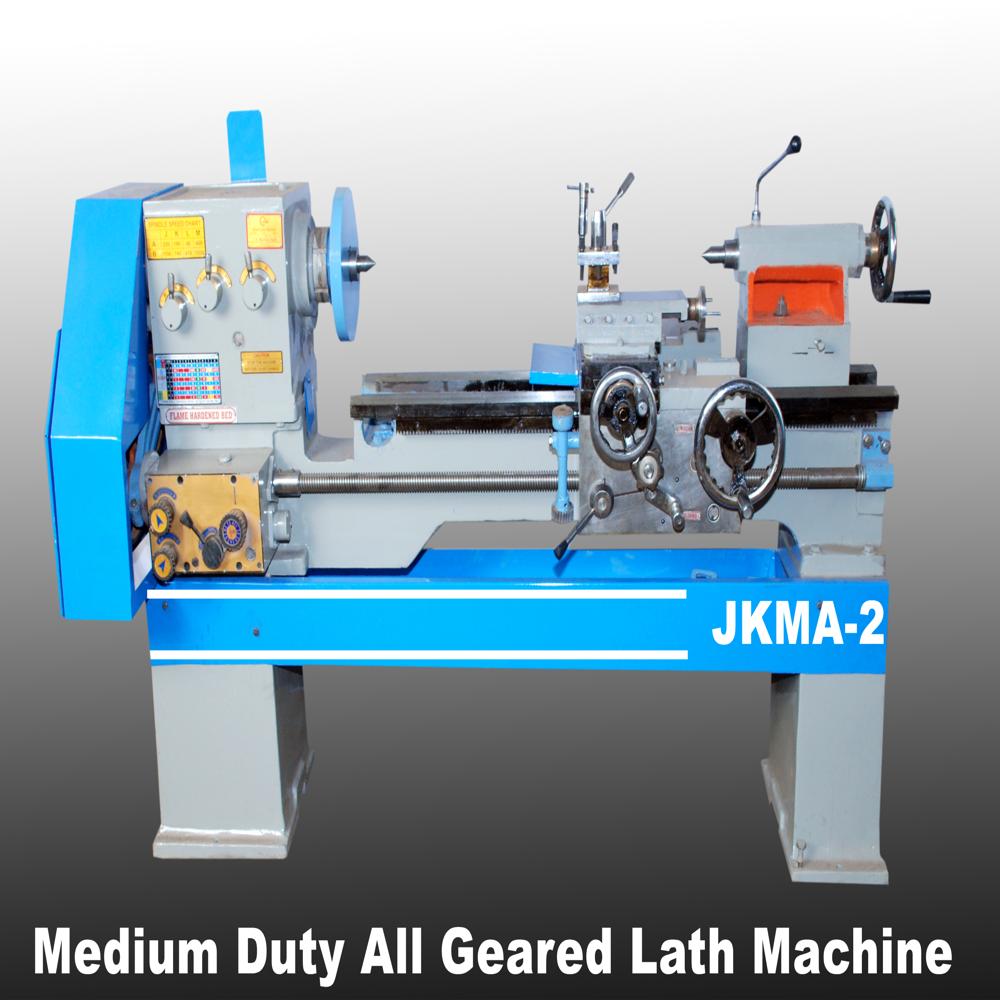

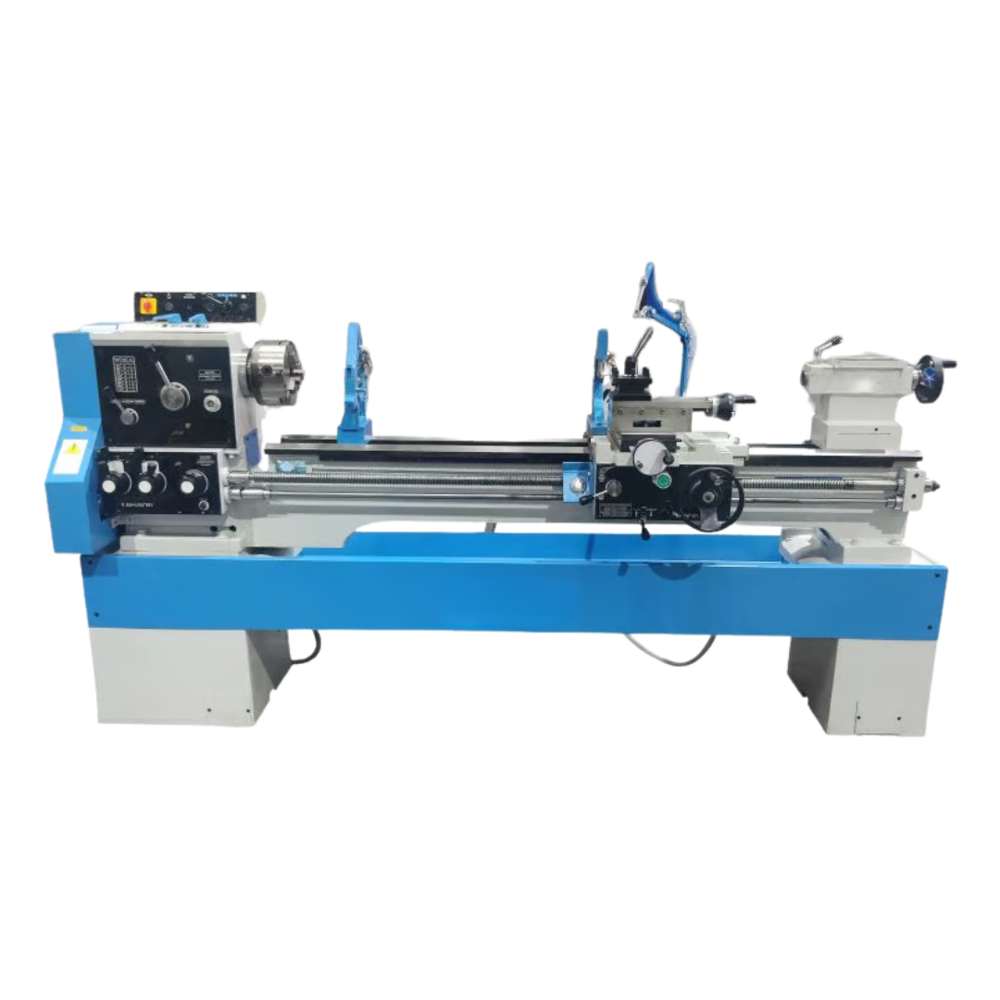

Medium Duty Lathe Machine

Medium Duty Lathe Machine

75000 INR

Product Details:

  • Product Type Horizontal
  • Material Iron
  • CNC Or Not Normal
  • Automatic Grade Automatic
  • Feature Simple Control
  • Color Grey
  • Click to view more
X

Price And Quantity

  • 1 , Unit
  • 75000 INR

Product Specifications

  • Horizontal
  • Iron
  • Automatic
  • Simple Control
  • Grey
  • Normal

Trade Information

  • Cheque, Cash in Advance (CID), Cash Advance (CA)
  • 1 Week
  • Yes
  • Within a certain price range free samples are available
  • Africa, Middle East, Asia
  • All India

Product Description

CAPACITY
Height of centre 215 mm
Swing over slide 250 mm
Swing over bed 425 mm
Swing in gap 700 mm
Admit between 500 mm
Length of bed 1370 mm
Width of bed 275 mm
HEAD STOCK
Hole through the spindle 52 mm
Taper bore in spindle M.T. - 6
Spindle nose 6 T.P.I.
Range of spindle speeds 30 to 500 R.P.M.
Spindle speeds 6
THREAD PITCHES
Metric Threads 1 to 7 mm
Inches Threads 4 to 28 T.P.I.
LEAD SCREW
Diameter 38 mm
Threads 4 T.P.I.
TAIL STOCK
Tail stock spindle die 50 mm
Taper bore in spindle M.T.- 4
Tail stock spindle travel 150 mm
WEIGHT AND DIMENSIONS
Net weight of Machine 600 kg
CARRIAGE
Compound slide swivelling Degree 45-0-45
Cross slide size 175 mm X 400 mm
Cross slide travel 235 mm
Top slide travel 125 mm
