BENCH DRILL MACHINE 20MM
20500.0 INR/Piece
Product Details:
- Model No 20mm Bench Drill
- Cooling System Optional coolant system
- Machine Type Bench Drilling
- Features Robust, vibration-free, adjustable table height, easy operation
- Production Capacity 30-50 machines per month
- Power Rating 0.37-0.75 kW
- Frequency 50-60 Hz
- Click to view more
X
BENCH DRILL MACHINE 20MM Price And Quantity
- 1 Piece
- 20500.0 INR/Piece
BENCH DRILL MACHINE 20MM Product Specifications
- 0.5 HP - 1 HP
- Green & Orange
- 220-240V (Single Phase)
- 5C to 45C
- Paint Coated
- 70 dB
- Conventional
- High precision drilling (Run out accuracy 0.02 mm)
- Approx. 700 x 350 x 1200 mm
- Manual Lubrication
- Belt Driven
- Cast Iron Base & Pillar
- 0.5 HP - 1 HP
- Manual Lever Feed
- 50 - 70 kg (approx.)
- 50-60 Hz
- Drilling in metal, wood, plastic, and precision engineering workshops
- Manual
- 30-50 machines per month
- Robust, vibration-free, adjustable table height, easy operation
- 0.37-0.75 kW
- Electric
- Bench Drill Machine
- Bench Drilling
- Optional coolant system
- 20mm Bench Drill
- Machine shops, automotive, workshop and tool rooms
- MT2
- 250 mm x 250 mm
- 1-13 mm or 1-20 mm
- 5 or more
- 125 mm
- 450-2500 RPM (Variable by pulley setting)
- 750 mm
- Heavy Duty Cast Iron
- 600 mm
- 20 mm
- Rack & Pinion Type
- 300 mm x 500 mm
- 63 mm
Product Description

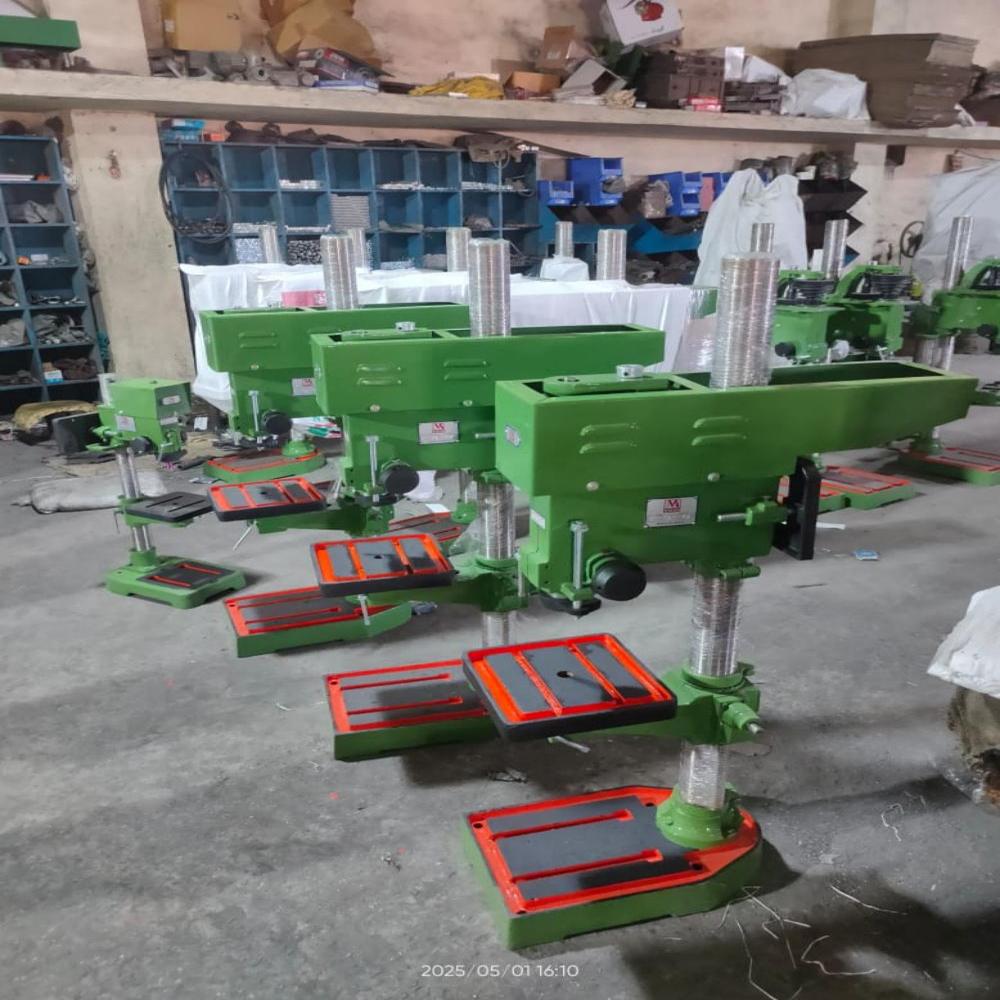

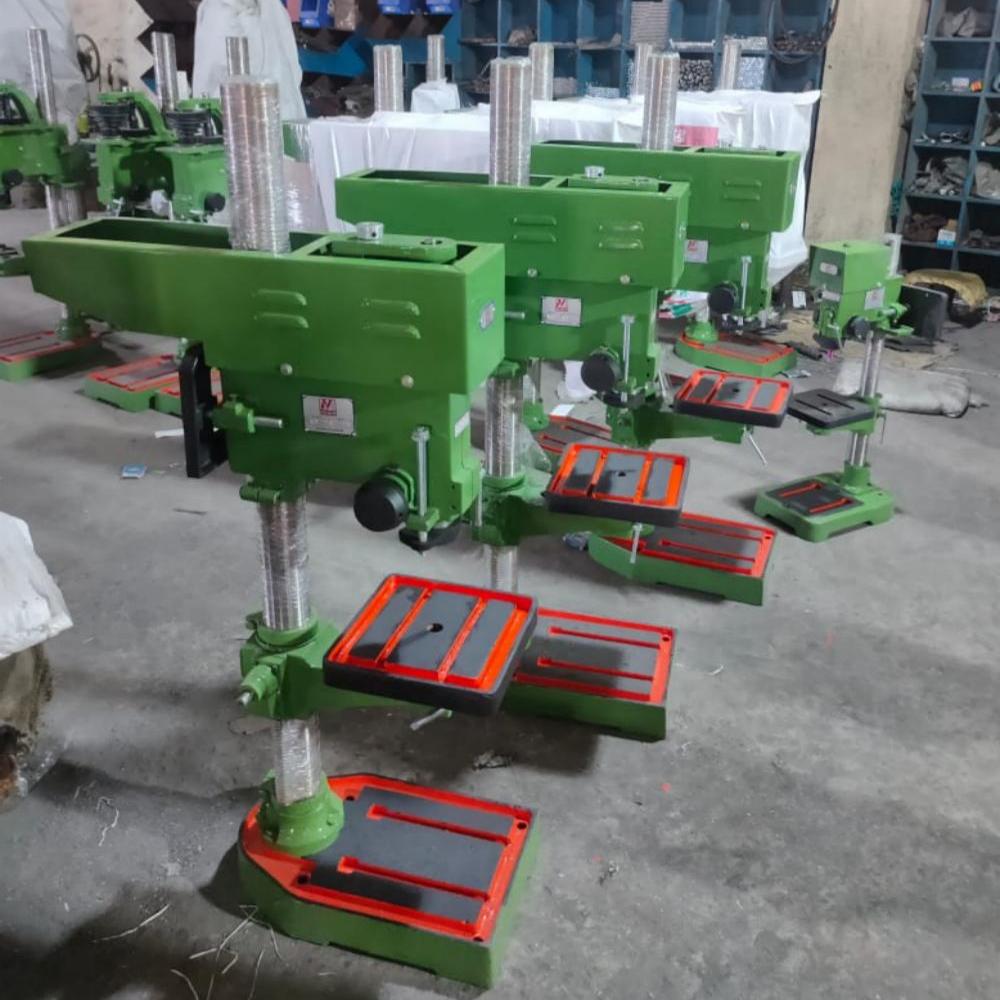

Bench Drill Machine 20MM
Our 20MM Bench Drill Machine is a compact, high-performance drilling solution designed for precision drilling operations in workshops, fabrication units, maintenance departments, educational institutes, and small-scale industries. Manufactured using premium-grade cast iron and quality-tested components, this machine delivers excellent stability, durability, and long service life even under continuous operation.
The machine is suitable for drilling holes up to 20 mm diameter in mild steel, aluminum, brass, plastic, wood, and other engineering materials. It features a rigid column, accurately machined work table, and a powerful motor that ensures smooth and vibration-free performance. The adjustable table allows convenient height and angle settings for improved accuracy and operator comfort.
The spindle is precision-engineered to provide high drilling accuracy with minimal runout, making it ideal for production as well as repair work. The machine is designed with multiple spindle speeds, allowing users to select the appropriate speed according to the material and drilling application. Its user-friendly controls and low maintenance requirements make it a preferred choice for industrial and commercial applications.
This 20MM Bench Drill Machine is widely used in engineering workshops, automobile industries, tool rooms, fabrication shops, maintenance units, and manufacturing facilities. Every machine is thoroughly inspected for quality, safety, and reliable performance before dispatch.
Features:
-
Drilling Capacity: 20 MM
-
Heavy-duty cast iron construction
-
Precision spindle for accurate drilling
-
Smooth and vibration-free operation
-
Adjustable work table
-
Multiple spindle speed options
-
Low maintenance and energy-efficient design
-
Easy installation and user-friendly operation
-
Robust construction for long service life
-
Suitable for continuous industrial use
We, Vikas Machinery Pvt. Ltd., are committed to delivering reliable, high-quality industrial machinery with competitive pricing, timely delivery, and dependable after-sales support to customers across India.
Versatile Drilling Performance
This bench drill machine is engineered to handle various drilling tasks, supporting steel, wood, and plastic materials. With spindle speeds adjustable from 450 to 2500 RPM and multiple speed settings, users can achieve optimal results for different applications. The table adjusts easily using a rack & pinion mechanism, allowing for precise workpiece positioning.
Built for Durability and Stability
Constructed with a heavy-duty cast iron frame, the machine minimizes vibration, ensuring stability and accuracy during operation. The painted surface protects against corrosion, while robust engineering ensures a long operational life. The adjustable table height enhances usability in diverse workshop setups.
Precision and Ease of Use
With a run-out accuracy of just 0.02 mm and features like a manual lever feed control and optional coolant system, operators can achieve high-quality, repeatable results. The machine is easy to operate, making it suitable for both seasoned professionals and workshop technicians.
FAQ's of BENCH DRILL MACHINE 20MM:
Q: How do I adjust the speed on the 20mm Bench Drill Machine?
A: You can adjust the working speed of the bench drill machine by changing the position of the belt on the multiple pulleys, offering 5 or more spindle speed options between 450 and 2500 RPM. This allows you to select the ideal speed based on material and drilling requirements.Q: What is the maximum drilling capacity in steel for this machine?
A: The maximum drilling capacity in steel for this bench drill is 20 mm, making it suitable for a variety of precision drilling applications in metalworking and engineering workshops.Q: When should I use the optional coolant system?
A: The optional coolant system is recommended for continuous drilling, especially when working with harder metals or thicker materials. It helps reduce heat build-up, improves tool life, and ensures cleaner drilling operations.Q: Where can the 20mm Bench Drill Machine be installed and used?
A: This machine is ideal for installation in machine shops, automotive workshops, tool rooms, and precision engineering facilities. Its compact design fits well on workbenches and offers flexibility in both small and large operational spaces.Q: What is the process for adjusting table height or position?
A: The table height and position adjustment are performed using the rack & pinion mechanism. Simply unlock the table and rotate the handle to raise or lower to the desired level, then lock it in place to secure your workpiece for drilling.Q: How does this bench drill ensure high precision in drilling tasks?
A: The drill machine features a run-out accuracy of 0.02 mm and is constructed with a cast iron frame to reduce vibration. Combined with the spindle taper MT2 and sturdy column, it delivers high precision hole placement and repeatability.Q: What are the main benefits of using this drill machine in a workshop?
A: Key benefits include robust construction for durability, adjustable speeds for versatility, high accuracy for precision work, easy operation with manual lever feed, and adaptability for various materials. These features help improve productivity and quality in workshop tasks.Tell us about your requirement
