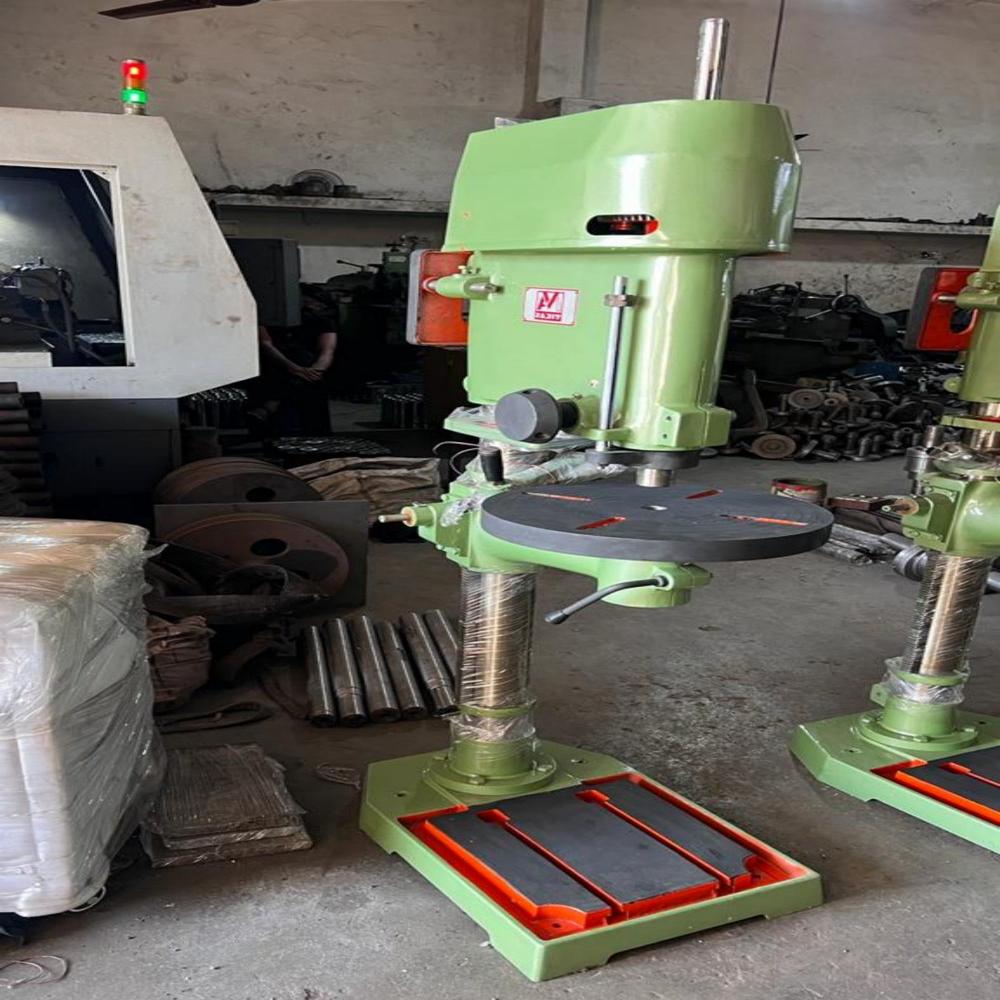

Heavy Duty 25mm Pillar Drill Machine
37500.0 INR/Piece
Product Details:
- Drive V-belt drive
- Power Rating 1.5 kW (approx.)
- Control System Manual lever feed
- Accuracy 0.05mm
- Lubricating System Greased bearings, manual lubrication
- Frame Type Cast Iron Body
- Cooling System Optional (external coolant provision possible)
- Click to view more
X
Heavy Duty 25mm Pillar Drill Machine Price And Quantity
- 37500.0 INR/Piece
- 1 Piece
Heavy Duty 25mm Pillar Drill Machine Product Specifications
- 50 Hz
- Moderate (<80 dB)
- Heavy-duty frame, adjustable table, robust construction
- Paint Coated
- 1 HP to 2 HP (varies by configuration)
- 1 HP to 2 HP
- Pillar Drill
- 25mm-PD-HD
- None (manual machine)
- 5-45C
- 220-240V or 415V, 3 Phase (as per motor specification)
- Green with orange highlights
- Conventional Mechanical
- Approx. 180-220 kg
- V-belt drive
- Heavy Duty Pillar Drill Machine
- 1.5 kW (approx.)
- Manual lever feed
- Standard: Approx. 600 mm x 400 mm x 1500 mm
- 0.05mm
- Semi-Automatic
- Greased bearings, manual lubrication
- Cast Iron Body
- Optional (external coolant provision possible)
- Electric
- Industrial drilling, metal fabrication, workshops
- 320 mm diameter (approx.)
- 485 mm x 320 mm
- 4 or 5 (as per model)
- 74 mm
- 25 mm in mild steel
- 125 mm
- Overload protection, emergency stop switch
- 950 mm
- 1 mm to 16 mm (standard chuck)
- 210 mm
- Multispeed, up to 1400 RPM
- MT-3
- Circular tilting table with slots
Product Description
25MM Heavy Duty Pillar Drill Machine is a robust and precision-engineered drilling machine designed for efficient and accurate drilling operations in industrial, engineering and fabrication applications. With a strong construction and reliable performance, this machine is suitable for continuous workshop use and demanding drilling requirements.
The machine offers a maximum drilling capacity of 25MM and is suitable for drilling various materials such as Mild Steel, Cast Iron, Aluminium and other suitable metals. Its heavy-duty pillar construction provides excellent stability and reduces vibration during operation, helping achieve accurate and consistent drilling results.
Key Features:
- 25MM maximum drilling capacity
- Heavy-duty and sturdy construction
- Rigid pillar-type design
- Smooth and accurate drilling performance
- Reliable spindle operation
- Easy depth adjustment
- User-friendly operation
- Low maintenance requirement
- Durable components for long service life
- Suitable for industrial and workshop applications
Applications:
The 25MM Heavy Duty Pillar Drill Machine is widely used in engineering workshops, fabrication industries, automobile workshops, machine shops, maintenance departments, manufacturing units and general metalworking applications. It is ideal for drilling holes in different types of metal components and workpieces.
Engineered for Industrial Strength and Precision
This pillar drill machine boasts a cast iron body for uncompromised stability and long-term durability. Its MT-3 spindle and standard chuck (1-16 mm) accommodate various tooling needs, while the circular tilting table with slotted design facilitates versatile positioning. Designed for mild steel and other metals, it delivers accurate, consistent results, ensuring flawless drilling operation for demanding applications.
Versatile Multispeed Operation and Safety Features
Equipped with up to five speed steps, the machine adapts to diverse drilling requirements. The integrated overload protection and emergency stop switch provide crucial safety. Manual lever control, accurate to 0.05 mm, guarantees precise feeds, with optional external coolant and manual lubrication to extend operational life. Its heavy-duty frame resists vibrations for superior workmanship.
FAQ's of Heavy Duty 25mm Pillar Drill Machine:
Q: How does the multispeed function work on the Heavy Duty 25mm Pillar Drill Machine?
A: The multispeed function is managed by a V-belt drive system, offering four or five selectable speed steps depending on the model. This allows operators to adjust spindle speed-up to 1400 RPM-for different materials and drill sizes, optimizing performance and tool life.Q: What types of materials can this pillar drill machine handle?
A: This pillar drill is primarily designed for industrial drilling in mild steel up to 25 mm diameter, but it can also be used for other metals and rigid materials typically found in metal fabrication and workshop environments.Q: When is the ideal time to use a circular tilting table with slots?
A: The circular tilting table with slots is especially beneficial when the workpiece requires angular drilling or precise positioning. Its design allows users to securely clamp and adjust the workpiece's angle, enhancing versatility for various machining tasks.Q: Where should the machine be installed for optimal usage?
A: For best performance, the pillar drill should be installed on a level, solid-floor workshop space, ensuring proper access to electrical connections (220-240V or 415V, three-phase). Adequate surrounding clearance is recommended for unhindered operation and maintenance.Q: What is the process for adjusting the drilling depth and table height on this machine?
A: Adjusting drilling depth involves setting the vertical travel of the spindle using the manual lever-feed system. The table height can be modified by loosening and repositioning the table support on the column, which allows accommodating various workpiece sizes up to 950 mm spindle-to-base distance.Q: How do safety features benefit operators using this pillar drill?
A: The built-in overload protection and emergency stop switch help prevent accidents and equipment damage, ensuring a safer working environment. These features provide quick power cut-off during unexpected issues, minimizing operator risk.Q: What are the main benefits of choosing this heavy-duty pillar drill for industrial applications?
A: Key benefits include a robust, vibration-resistant cast iron construction, high drilling accuracy (up to 0.05 mm), flexible speed control, and adaptability for diverse metalworking tasks. Its ergonomic manual controls and safety mechanisms deliver efficient and secure performance in industrial settings.Tell us about your requirement
