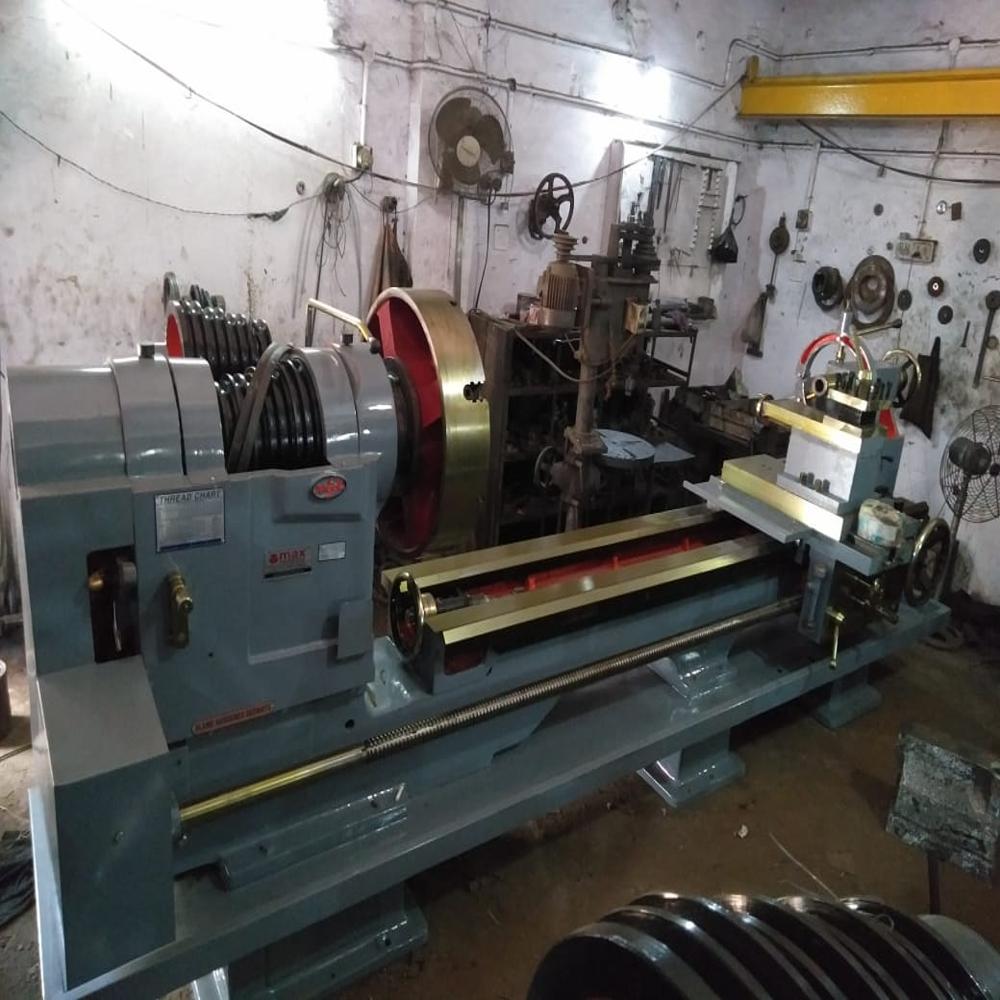

All Geared Lathe Machines
80000 INR
Product Details:
X
All Geared Lathe Machines Price And Quantity
- 1 Unit
- 80000 INR
All Geared Lathe Machines Trade Information
- Cash Advance (CA) Cheque Cash in Advance (CID)
- 1 Week
- Yes
- Within a certain price range free samples are available
- Middle East Africa Asia
- All India
Product Description
| Light duty all geared lathe machine : technical specifications | |||
| Model | tagl-4 | tagl-5 | tagl-6 |
| Capacity : | |||
| Height of centre | 190 mm | 190 mm | 190 mm |
| Swing over bed | 380 mm | 380 mm | 380 mm |
| Swing over cross slide | 250 mm | 250 mm | 250 mm |
| Swing in gap | 560 mm | 560 mm | 560 mm |
| Admit between centre | 550 mm | 775 mm | 1000 mm |
| Movement of cross slide | 190 mm | 190 mm | 190 mm |
| Movement of compound slide | 100 mm | 100 mm | 100 mm |
| Bed type : | 2v & 2 flat | 2v & 2 flat | 2v & 2 flat |
| Bed length | 1372 mm (ft. : 4'. 6") | 1600 mm (ft. : 5'. 3") | 1828 mm (ft. : 6') |
| Bed width | 240 mm | 240 mm | 240 mm |
| Gap length | 125 mm | 125 mm | 125 mm |
| Head stock | |||
| Hole through the spindle | 40 mm | 40 mm | 40 mm |
| Spindle nose | loo type | loo type | loo type |
| Range of spindle speed | 45 to 1000 rpm | 45 to 1000 rpm | 45 to 1000 rpm |
| No. Of spindle speed | 8 | 8 | 8 |
| Tail stock | |||
| Quill dia. | ø 38 mm | ø 38 mm | ø 38 mm |
| Taper in quill | mt-3 | mt-3 | mt-3 |
| Quill travel | 125 mm | 125 mm | 125 mm |
| Threads | |||
| Threads per inch | 4 to 70 tpi/45 | 4 to 70 tpi/45 | 4 to 70 tpi/45 |
| Metric thread | 0. 4 to 7 mm | 0. 4 to 7 mm | 0. 4 to 7 mm |
| Lead screw | ø 32 mm x 4 tpi | ø 32 mm x 4 tpi | ø 32 mm x 4 tpi |
| Feed shaft | 25 mm | 25 mm | 25 mm |
| Electricals | |||
| Motor power | 1. 5 kw/ 2 h. P. | 1. 5 kw/ 2 h. P. | 1. 5 kw/ 2 h. P. |
