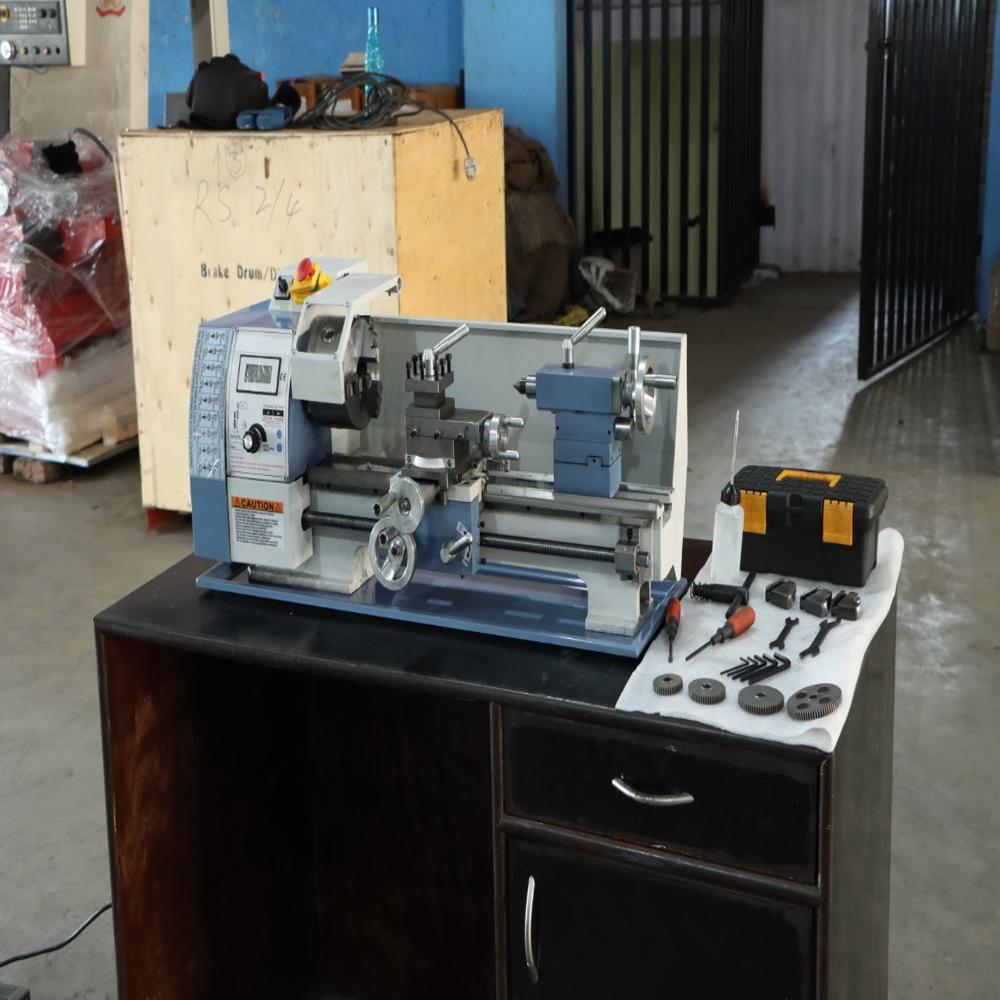

MINI LATHE MACHINE

Name: MINI LATHE MACHINE
Brand: VIKAS MACHINERY AND AUTOMOBILES
Price: 68000.0 INR
Availability: InStock

68000.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature 5C - 45C
Power Rating 0.75 HP
Control System Toggle/Rotary Switch and Manual Control
Features Compact, Portable, Variable Speed, Easy Operation
Cooling System Manual (Optional Oil Pump)
Noise Level <70 dB
Model No Mini Lathe 7x12/7x14
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

MINI LATHE MACHINE Price And Quantity

Price 68000.0 INR/Piece
Minimum Order Quantity 1 Piece

MINI LATHE MACHINE Product Specifications

Noise Level <70 dB
Color Blue & Grey
Control System Toggle/Rotary Switch and Manual Control
Technology Precision Lathe Technology
Features Compact, Portable, Variable Speed, Easy Operation
Cooling System Manual (Optional Oil Pump)
Surface Treatment Paint Coated / Powder Coated
Power Rating 0.75 HP
Power Source Electric
Operating Temperature 5C - 45C
Frame Type Heavy Duty Cast Iron Bed
Weight (kg) Approx. 40 kg
Product Type Mini Lathe Machine
Production Capacity Single piece or small batch production
Usage & Applications Metal Turning, Threading, Drilling, Small Part Fabrication
Drive Belt Drive
Dimension (L*W*H) 700 mm x 300 mm x 380 mm (approx.)
Lubricating System Manual Lubrication
Accuracy 0.05 mm
Model No Mini Lathe 7x12/7x14
Frequency 50/60 Hz
Operating Type Semi-Automatic / Manual
Motor Power 550W
Machine Type Mini Bench Lathe
Voltage 220V
Power 550W

Accessories Included Tool box, gears, adjustment tools, oil can, centers
Working Speed 100-2500 RPM (Variable)
Bed Width 100 mm
Main Spindle Speed Range 100-2500 RPM (Variable by electronics)
Spindle Bore 20 mm
Swing Over Bed 180 mm
Compound Slide Travel 50 mm
Chuck Type 3-Jaw Self Centering Chuck
Application Tool rooms, Workshops, Education and Training
Thread Pitch Range 0.5-2.5 mm
Tailstock Taper MT2
Distance Between Centers 300 mm
Cross Slide Travel 50 mm
Gear Material Steel and Plastic

Product Description

MINI LATHE MACHINE

We are offering a high-quality Mini Lathe Machine designed for precision turning, facing, threading, drilling and other machining operations. Manufactured using quality materials and precision-engineered components, this machine provides smooth operation, reliable performance and long service life.

The Mini Lathe Machine features a compact and sturdy construction, making it suitable for small workshops, maintenance departments, engineering industries, tool rooms, educational institutions, laboratories and hobby applications. Its user-friendly design allows easy operation and adjustment while maintaining good machining accuracy.

The machine is suitable for machining various metal components and small workpieces. Its robust bed construction helps provide stability during operation, while the precision spindle and smooth-running mechanism ensure consistent machining performance. The compact design also makes it easy to install and operate where workshop space is limited.

Key Features:

Compact and space-saving design
Sturdy and durable construction
Precision turning performance
Smooth and reliable operation
Easy to operate and maintain
Suitable for small component machining
Low maintenance requirement
Long service life
Suitable for workshops, industries and educational institutions
Available with different specifications as per customer requirements

Applications:
Mini Lathe Machine is widely used for turning, facing, threading, boring and other machining operations on small metal components. It is suitable for engineering workshops, repair and maintenance work, tool rooms, training institutes and small-scale manufacturing applications.

We provide quality Mini Lathe Machines at competitive prices with dependable performance and customer support.

Precision Engineering for Versatile Applications

This mini lathe machine is tailored for tasks that demand accuracy and flexibility, from metal turning and drilling to threading and small lot manufacturing. It features variable electronic speed control, allowing users to adjust speeds between 100 and 2500 RPM to suit a wide range of materials and operations. Heavy-duty cast iron bed construction ensures longevity and vibration resistance.

Designed for Convenience and Portability

Compact dimensions (700mm x 300mm x 380mm) and a weight of approximately 40 kg make this bench lathe easily portable and adaptable for use in constrained spaces such as educational laboratories or small workshops. It is finished with a durable painted or powder-coated surface for rust protection and easier maintenance.

Reliable Performance and User-Friendly Controls

Equipped with a powerful 550W (0.75 HP) motor, the lathe offers semi-automatic and manual operation modes. Its control system uses simple toggle and rotary switches for straightforward adjustments. The self-centering 3-jaw chuck and included toolkit simplify setup and facilitate diverse metalworking projects.

FAQ's of MINI LATHE MACHINE:

Q: How do I adjust the operating speed on the MINI LATHE MACHINE?

A: You can adjust the speed using the electronic controls located on the lathe's panel. Simply rotate the switch to select a speed between 100 and 2500 RPM, making it easy to match the speed to your specific project requirements.

Q: What types of materials can this mini lathe handle?

A: The mini lathe is primarily designed for metalworking, enabling turning, threading, and drilling of small metal parts. It is also suitable for machining other soft materials, making it ideal for tool rooms, workshops, and educational training.

Q: When should I use the manual versus the semi-automatic mode?

A: Use manual mode for hands-on control during intricate tasks or adjustments. The semi-automatic mode is recommended for repetitive operations, streamlining processes and boosting consistency, especially during small batch production.

Q: Where is it best to install this mini lathe machine?

A: This lathe is best suited for bench installation in compact workshops, tool rooms, and educational labs due to its manageable size, robust cast iron frame, and minimal noise. Ensure your setup has a stable surface and access to a 220V power supply.

Q: What is the process for regular maintenance?

A: Maintenance involves manual lubrication of moving parts, checking belt tightness, clearing any swarf, and periodically inspecting the gear system. The kit includes tools and oil to assist in these routines, ensuring sustained precision and performance.

Q: How is the MINI LATHE MACHINE beneficial for small-batch production?

A: Its variable speed, high accuracy (0.05mm), and ease of use make it perfect for small runs and prototyping. Compact design, rapid setup, and included accessories enable efficient switching between tasks and minimal downtime, supporting flexible production schedules.
