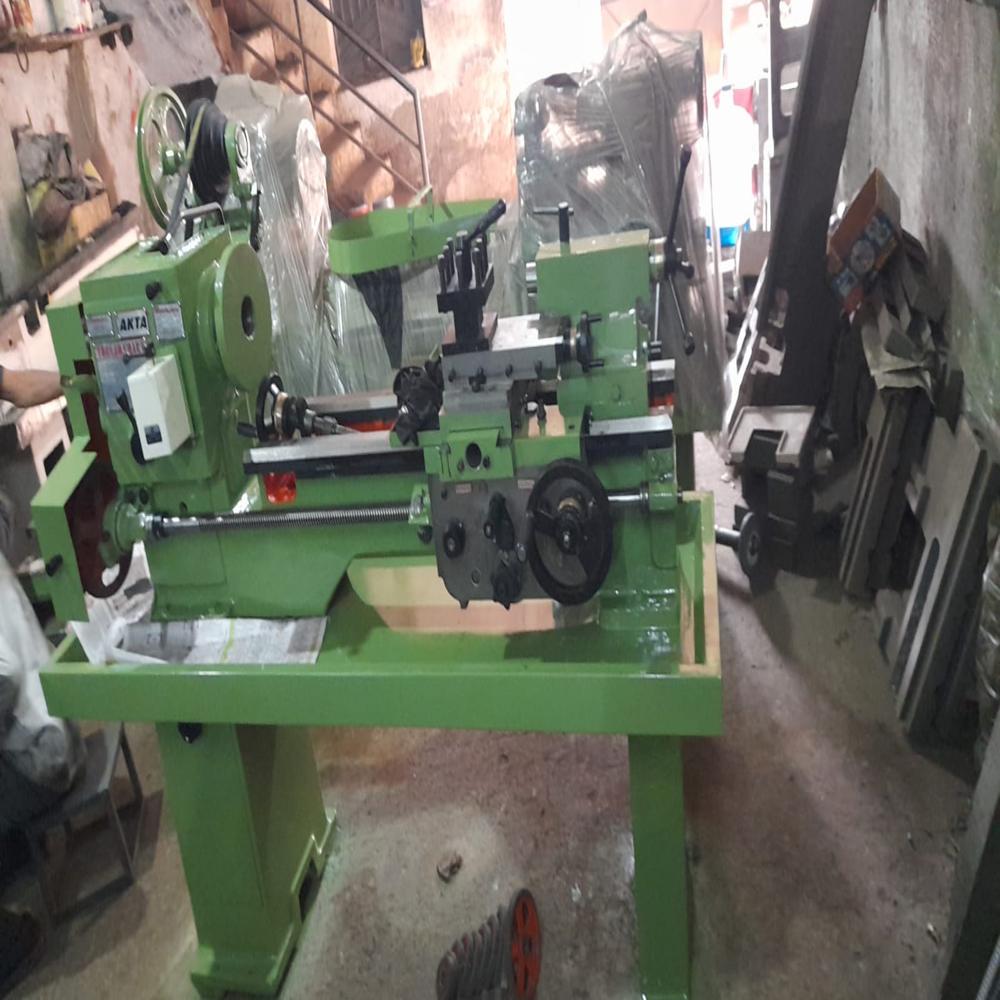

Light Duty Lathe Machines
105000.0 INR/Unit
Product Details:
- Noise Level 75 dB
- Accuracy 0.05 mm
- Features Robust design, easy operation, precise machining, suitable for light to medium work
- Machine Type Light Duty Lathe
- Production Capacity Small to Medium scale batch jobs
- Drive V-Belt drive
- Control System Hand operated
- Click to view more
X
Light Duty Lathe Machines Price And Quantity
- 1 Unit
- 105000.0 INR/Unit
- 500 mm to 750 mm
- 165 mm
- MT3
- Approx. 1.8 x 0.75 m
- 0.05 - 0.2 mm/rev
- Threaded/Nut mounted
- 150 mm
- 30 mm
- 3 Jaw chuck, 4 Jaw chuck, centers, tool post spanner, and gear set
- Four-way
- Threaded/Standard type
- MT2
- 250 mm to 300 mm
- Emergency stop, guards on moving parts
- 8 to 12 steps
- 100 mm
- Overload relay and fuses
- 20 mm
- Free-standing on shop floor
Light Duty Lathe Machines Product Specifications
- V-Belt drive
- Hand operated
- Small to Medium scale batch jobs
- Light Duty Lathe
- Manual
- Robust design, easy operation, precise machining, suitable for light to medium work
- Paint Coated
- 1 HP to 2 HP
- 0.05 mm
- Light Duty Lathe Machine
- 75 dB
- Blue & White
- Manual lubrication
- Turning, Facing, Threading, Drilling, Knurling in small workshop or tool room
- Conventional
- Electric
- Manual cooling (optional coolant pump)
- Rigid cast iron bed
- 1 HP to 2 HP
- 50 Hz
- 220V/440V
- 1-2 HP
- 350 kg (approx.)
- 5C to 45C
- Standard Light Duty
- 1520 x 700 x 1200 mm (approx.)
- 500 mm to 750 mm
- 165 mm
- MT3
- Approx. 1.8 x 0.75 m
- 0.05 - 0.2 mm/rev
- Threaded/Nut mounted
- 150 mm
- 30 mm
- 3 Jaw chuck, 4 Jaw chuck, centers, tool post spanner, and gear set
- Four-way
- Threaded/Standard type
- MT2
- 250 mm to 300 mm
- Emergency stop, guards on moving parts
- 8 to 12 steps
- 100 mm
- Overload relay and fuses
- 20 mm
- Free-standing on shop floor
Light Duty Lathe Machines Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 1 Week
- No
- Within a certain price range free samples are available
- Asia, Middle East, Africa
- All India
Product Description
| Height of centre | 165 mm |
| Swing over slide | 190 mm |
| Swing over bed | 315 mm |
| Swing in gap | 500 mm |
| Admit between | 725 mm |
| Length of bed | 1370 mm |
| Width of bed | 235 mm |
| Head stock Hole through the spindle | 40 mm |
| Taper bore in spindle | M.T. - 5 |
| Spindle nose & Size | 6 |
| T.P.I. Range | 62 mm x 8 |
| Drive and electricals Motor | 1 H.P., 1440 rpm |
| Head stock belt | B-52 Tail stock |
| Taper born in sleeve | M.T. - 3 |
| Sleeve Travel | 125 mm |
| Sleeve Dia | 38 mm |
| carriage Compound slide swivelling | Degree 45-0-45 |
| Cross slide size | 175 mm X 400 mm |
| Carriage size | 375 mm X 400 mm |
| Top slide travel | 125 mm |
Versatile Lathe Solution for Workshops
Designed for small workshops and tool rooms, this light-duty lathe is suitable for precise and diverse machining tasks. With its compact footprint and easy installation, it can comfortably fit into limited spaces while supporting turning, threading, drilling, and knurling operations. The combination of robust construction and flexible speeds makes it an excellent choice for startups and educational institutions.
Precision and Operator Safety
Accuracy is prioritized with a machining precision of 0.05 mm. The machine incorporates reliable safety features, including an emergency stop and comprehensive guarding on moving parts. Electrical protection is built-in through overload relays and fuses, ensuring stable operation. The use of manual cooling and lubrication fosters simple maintenance routines.
Comprehensive Accessories and Simple Control
Every machine comes with essential accessories: 3-jaw and 4-jaw chucks, centers, a tool post spanner, and a gear set for immediate usability. Simple hand-operated controls allow users of varying experience levels to operate the machine effectively. The four-way tool post provides fast tooling changes, improving process efficiency for small batches.
FAQ's of Light Duty Lathe Machines:
Q: How do I install this light duty lathe machine in my workshop?
A: The machine is designed for straightforward installation. It is free-standing and requires a floor space of approximately 1.8 x 0.75 meters. Simply position it on a stable shop floor, ensure proper electrical connections (220V or 440V), and confirm all safety guards are in place before operation.Q: What types of jobs can I perform with this lathe?
A: This lathe is ideal for light to medium-duty turning, facing, threading, drilling, and knurling operations. Its versatility makes it suitable for small to medium-scale batch production in tool rooms, maintenance departments, and educational settings.Q: When should I perform maintenance on the lathe?
A: Regular maintenance, such as manual lubrication and checking electrical safety devices, should be performed daily or after each use. Inspect the drive belts, spindle, guards, and accessories weekly, and ensure the machine is clean and free of debris to prevent malfunctions.Q: Where can I use this machine effectively?
A: This machine is suitable for small workshops, educational institutions, tool rooms, and maintenance shops. Its compact dimensions and moderate weight allow it to be installed in various indoor environments with adequate power supply and ventilation.Q: What safety features are included with the lathe?
A: Safety is ensured through an emergency stop button, guards covering moving parts, overload relays, and fuses in the electrical system. Users should always follow proper safety procedures and wear personal protective equipment during operation.Q: How does the four-way tool post enhance operation efficiency?
A: The four-way tool post allows quick and easy changeover between tools, reducing setup times and increasing machining throughput, especially during batch production or when performing multiple operations in succession.Q: What benefits does the conventional manual control offer over CNC alternatives?
A: Manual control provides greater tactile feedback, intuitive operation, and lower initial costs. It is ideal for custom, one-off jobs or training environments where direct operator involvement and skill development are valued.Tell us about your requirement
