20 MM Drilling Machine 20 MM Drilling Machine 20 MM Drilling Machine 20 MM Drilling Machine

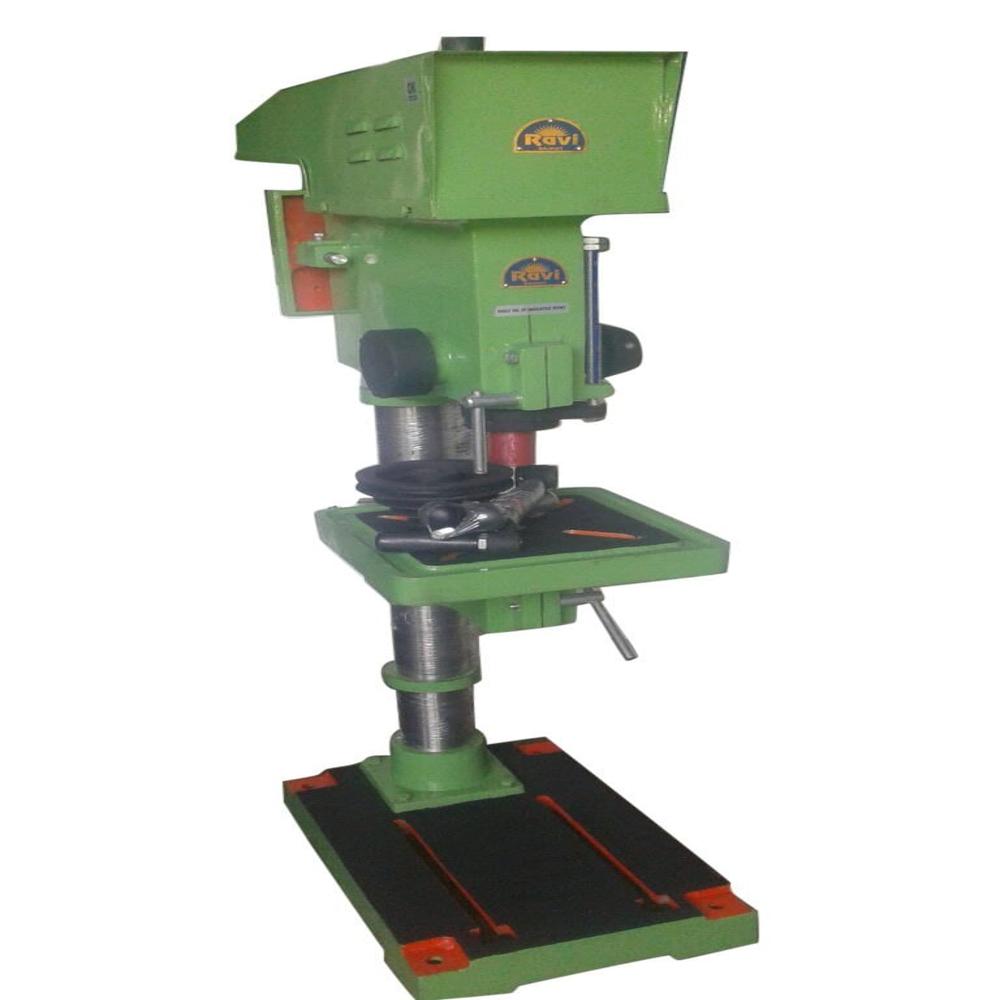

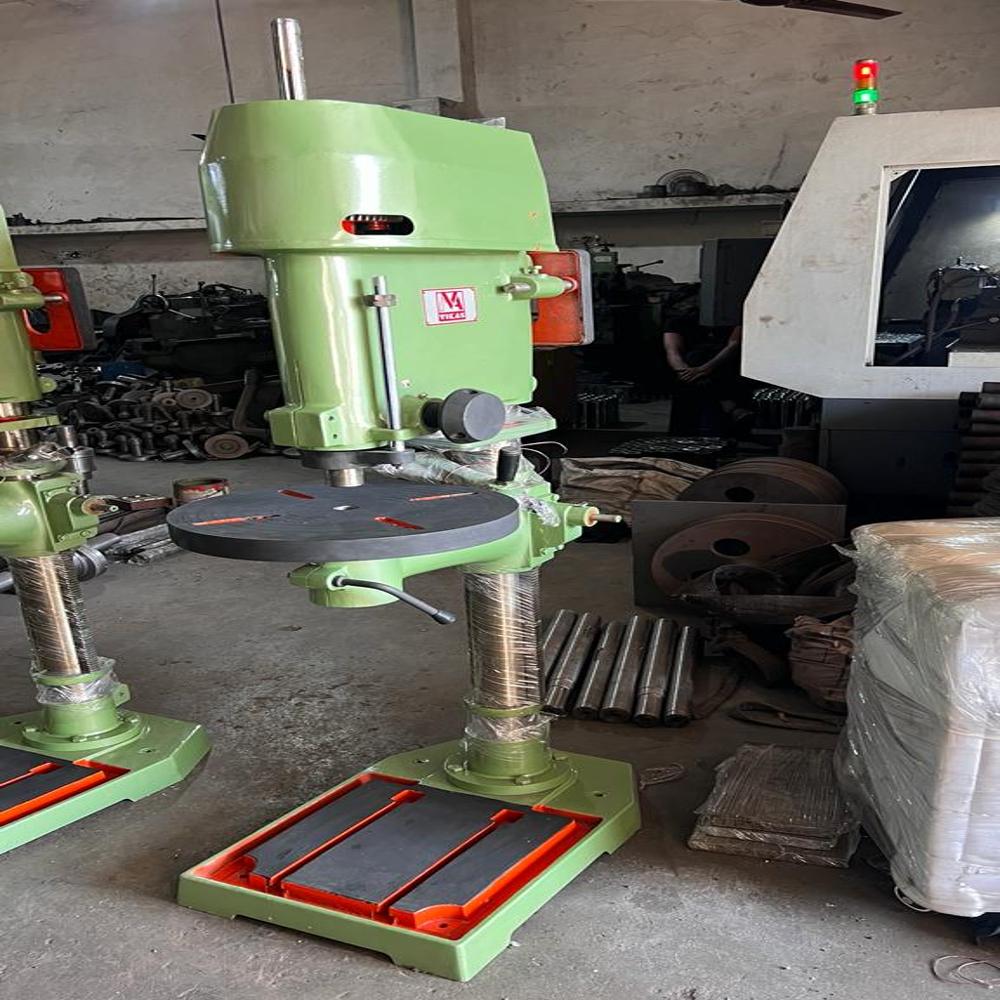

20 MM Drilling Machine

36500.0 INR/Unit
Get a Price/Quote

Product Details:

  • Frame Type Heavy Duty Cast Iron Base
  • Motor Power 0.75 KW / 1 HP
  • Features Robust Construction, Smooth Operation, Corrosion Resistant
  • Lubricating System Grease Packs
  • Voltage 220V / 380V
  • Accuracy High Precision
  • Production Capacity 50 Machine/Month
  • Click to view more
Request To Call Back Send Inquiry
X

20 MM Drilling Machine Price And Quantity

  • 1
  • 36500.0 INR/Unit
  • 20 mm
  • Bench or Floor Mount
  • MT-2
  • 380 mm
  • Indoor/Industrial
  • Low Maintenance Design
  • 375 x 250 mm
  • 270 x 270 mm
  • 3
  • 630 mm
  • 3.5A
  • Keyed, 13 mm
  • IE2
  • A-37
  • Keyed Chuck & Morse Taper
  • 72 mm
  • 3-Speed (380 / 720 / 1200 RPM)
  • 900 mm
  • 120 mm
  • Electrical Cutout Switch, Emergency Stop
  • Single / Three Phase

20 MM Drilling Machine Product Specifications

  • High Precision
  • Powder Coated
  • 220V / 380V
  • Grease Packs
  • Green
  • 0.75 kW
  • Robust Construction, Smooth Operation, Corrosion Resistant
  • 0.75 KW / 1 HP
  • 600 x 390 x 900 mm
  • Conventional
  • Heavy Duty Cast Iron Base
  • On/Off Switch
  • 1 HP
  • <75 dB
  • Drilling
  • Manual
  • Drilling holes in metal, wood, plastic; Shop floor and workshops
  • 0 to 45C
  • 50 Hz
  • Belt Drive
  • Manual
  • 60 kg
  • 20MM/Drill
  • Bench Drilling Machine
  • Electric
  • 50 Machine/Month
  • 20 mm
  • Bench or Floor Mount
  • MT-2
  • 380 mm
  • Indoor/Industrial
  • Low Maintenance Design
  • 375 x 250 mm
  • 270 x 270 mm
  • 3
  • 630 mm
  • 3.5A
  • Keyed, 13 mm
  • IE2
  • A-37
  • Keyed Chuck & Morse Taper
  • 72 mm
  • 3-Speed (380 / 720 / 1200 RPM)
  • 900 mm
  • 120 mm
  • Electrical Cutout Switch, Emergency Stop
  • Single / Three Phase

20 MM Drilling Machine Trade Information

  • Cash in Advance (CID), Cheque, Cash Advance (CA)
  • 1 Week
  • Yes
  • Within a certain price range free samples are available
  • Middle East, Asia, Africa
  • All India

Product Description



Step into the spotlight with the 20 MM Drilling Machine, an elite, first-rate choice for industrial and workshop needs. In demand for its precision and reliability, this eminent model features a robust cast iron base and delivers a maximum drilling capacity of 20 mm, 3-speed settings (380, 720, 1200 RPM), and advanced safety features like electrical cutout and emergency stop. Shop now to experience smooth operation, low maintenance design, and corrosion resistance. Ideal for metal, wood, and plastic applications-engineered for those who demand excellence.

Distinctive Features & Versatile Plant Application

The 20 MM Drilling Machine sets a high standard with a keyed chuck, MT-2 spindle taper, and 120 mm spindle travel. Its heavy-duty frame is corrosion-resistant and ensures smooth surface treatment. Designed for bench or floor mounting, it excels in drilling operations for metal, wood, and plastic. Renowned for reliability, it is suitable for industrial plants, workshops, and shop floors where high precision and consistent maintenance-free performance are vital for ongoing production.


Reliable Supply, Secure Packaging, and Efficient Transportation

With a production rate of 50 machines per month, the 20 MM Drilling Machine is prepared for swift dispatch. Units are securely packaged to withstand transportation challenges, ensuring the product arrives in optimal condition. FOB Port options are available across India to facilitate cost-effective shipping. Distributors and wholesalers benefit from competitive rates, with a focus on supplying at the lowest price without compromising on quality or delivery timelines.


CAPACITY 40 MM 38 MM 32 MM 25 MM HD 25 MM MD 25 MM LD 20 MM
Drilling [C.I.] 45 38 32 25 25 25 20
Drilling [M.S.] 40 35 32 25 25 25 20
Tapping Cap. 25 20 15 20 15 15 10
Drill Head
Taper Spindle M.T.-4 M.T.-4 M.T.-4 M.T.-3 M.T.-3 M.T.-3 M.T.-2
Quil Movement 240 240 250 240 175 155 120
Speed
No. Range of Spindle 8 8 8 8 8 8 8
Speed min./max. 45 to 1000 70 to 2000 70 to 2000 70 to 2000 130 to 2600 150 to 2651 80 to 3500
Feeds
No. Range of Feed Manual Manual Manual Manual Manual Manual Manual
Working Range
Distance from Spindle Center to
Cloumn Face		 355 300 280 250 250 230 200
Max. Distance from Spindle to base
Plate		 1030 1000 1000 1000 970 1050 900
Max. Distance from Spindle to work
tabel 		550 530 530 530 530 680 650
Work Table
Table Diameter 485 x 485 422 x 422 422 x 422 370 round 325 x 325 310 x 310 250 x 250
Base Plate & Column
Column Diameter 135 108 101 92 92 92 74
Base Plate 800 x 525 720 x 470 660 x 410 660 x 410 580 x 365 370 x 550 480 x 310
No. of 'T' Slots 2 2 2 2 2 2 2
Power
Drilling Motor 2 HP 1.5 HP 1 HP 1 HP 1 HP 1 HP 0.5 HP
960 RPM 1400 RPM 1400 RPM 1400 RPM 1400 RPM 1440 RPM 1400 RPM
Weight [Kgs.]
Weight in K.G. 550 375 300 275 225 185 110
V-BELT
B-71 B-57 B-56 B-52 B-52 B-49 A-44


FAQ's of 20 MM Drilling Machine:


Q: How is the 20 MM Drilling Machine installed in industrial settings?

A: The 20 MM Drilling Machine offers flexible installation options-either bench or floor mounting-allowing it to be easily set up in various industrial environments according to space and workflow needs.

Q: What are the main safety features included in this drilling machine?

A: This model incorporates an electrical cutout switch and an emergency stop button, designed to provide maximum operator safety and reduce accident risk during use.

Q: When should routine maintenance be performed on the 20 MM Drilling Machine?

A: Typically, periodic checks on the keyed chuck, spindle, and lubrication via grease packs ensure smooth performance. The low-maintenance design reduces servicing frequency, but it's wise to inspect it monthly for optimal functioning.

Q: Where can this drilling machine be most effectively utilized?

A: It is most effective on shop floors, manufacturing plants, and workshops for drilling through materials like metal, wood, and plastic, requiring consistent accuracy and robust operation.

Q: What is the benefit of the machine's IE2 energy efficiency rating?

A: An IE2 energy efficiency class ensures reduced power consumption, contributing to lower operating costs and supporting environmentally conscious industrial practices.

Q: How does the machine's packaging safeguard it during transportation?

A: Each unit is packaged to prevent damage from shocks or vibrations during transit, maintaining product integrity from dispatch to delivery.
