RADIAL DRILL MACHINE 25MM

Name: RADIAL DRILL MACHINE 25MM
Brand: VIKAS MACHINERY AND AUTOMOBILES
Price: 75000.0 INR
Availability: InStock

75000.0 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz
Frame Type Horizontal
Drive Belt Drive
Power Rating 1.5 kW
Operating Temperature 5C to 45C
Cooling System Provision for coolant system
Model No 25mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

RADIAL DRILL MACHINE 25MM Price And Quantity

Minimum Order Quantity 1 Piece
Price 75000.0 INR/Piece

RADIAL DRILL MACHINE 25MM Product Specifications

Production Capacity Up to 25 mm drilling capacity in mild steel
Machine Type Radial Drilling Machine
Power 1.5 HP to 2 HP
Motor Power 1.5 HP
Usage & Applications Drilling, Boring, Tapping on Metal Components
Control System Manual
Noise Level Low
Color Green/Black
Product Type Radial Drill Machine
Operating Type Semi-Automatic
Dimension (L*W*H) Approx. 980 x 600 x 1240 mm
Operating Temperature 5C to 45C
Cooling System Provision for coolant system
Technology Manual / Conventional
Model No 25mm
Voltage 220V / 415V, 3 Phase
Surface Treatment Paint Coated
Frame Type Horizontal
Drive Belt Drive
Frequency 50 Hz
Power Rating 1.5 kW
Power Source Electric
Accuracy High precision for industrial operations
Connectivity Options Standard electrical connection
Features Heavy-duty base, Robust construction, Adjustable arm, Smooth operation
Lubricating System Manual lubrication
Weight (kg) Approx. 350 kg

Paint Quality Industrial Grade Enamel
Maximum Drilling Capacity in Cast Iron 32 mm
Spindle Taper MT-3
Distance from Spindle to Base 825 mm
Distance from Spindle to Column 760 mm
Electricals Standard ISI marked switch-gear
Safety Features Spindle guard, Overload protection
Working Speed 65 - 2000 RPM (Variable)
Number of Spindle Speeds 8
Customization Available as per client requirements
Feed Range Manual
Maximum Drilling Capacity in Mild Steel 25 mm
Arm Rotation 360 degrees
Base Size 800 x 500 mm (approx.)
Spindle Travel 175 mm
Suitable Material Steel, Cast Iron, Aluminum
Column Diameter 127 mm
Supply Condition Fully assembled and tested
T-Slot Table Available
Maintenance Easy; minimum required
V-Belt Specification B-52 type or equivalent
Table Size 250 x 250 mm
Installation Floor Mounted

Product Description

25MM Radial Drill Machine

25MM Radial Drill Machine is a robust and versatile industrial drilling machine designed for accurate and efficient drilling operations on Mild Steel, Cast Iron and other metal components. It is suitable for engineering workshops, fabrication units, automobile industries, maintenance departments and general industrial applications.

The machine is engineered with a rigid construction and precision spindle arrangement to provide smooth, stable and vibration-free drilling performance. Its radial arm and adjustable drilling head allow operators to position the spindle conveniently according to the workpiece, making it suitable for drilling holes at different locations without frequent workpiece repositioning.

With a 25MM maximum drilling capacity, this radial drilling machine offers excellent flexibility for medium-duty industrial applications. Depending on the machine configuration, specifications may include MT-3/MT-4 spindle taper, multiple spindle speeds and approximately 185200MM spindle travel.

Key Features:

25MM drilling capacity
Heavy-duty and rigid machine construction
Adjustable radial arm and drilling head
Smooth and accurate drilling operation
Precision spindle for better hole accuracy
Multiple spindle speed options
Suitable for Mild Steel and Cast Iron
Easy operation and maintenance
Durable components for long service life
Ideal for industrial and workshop applications

Applications:

Suitable for fabrication work, engineering workshops, automobile industries, machine shops, maintenance work, manufacturing units and general metalworking applications.

The 25MM Radial Drill Machine provides a practical combination of strength, accuracy, flexibility and productivity, making it an ideal choice for industries requiring reliable radial drilling performance.

Versatile and High-Precision Drilling

Engineered for reliability, the 25mm Radial Drill Machine delivers smooth and precise results across various metals, including steel, cast iron, and aluminum. Eight spindle speeds and a manually adjustable feed allow operators to tackle a range of industrial drilling, boring, and tapping applications with ease. Its robust construction guarantees long-term durability and stable performance in demanding environments.

Effortless Operation and Safety Assured

Designed with operator convenience in mind, this machine features a fully adjustable arm, 360-degree rotational capability, and intuitive manual controls. Safety is prioritized through the inclusion of a spindle guard and built-in overload protection. Its low noise level and efficient lubrication system ensure comfortable and safe use during prolonged operations.

Customizable to Fit Your Workflow

Recognizing diverse industrial needs, this radial drill machine offers custom configuration options on request, including tailored electrical and mechanical features. Easy installation with a floor-mounted base and standard ISI-marked switch-gear means it integrates smoothly into your existing facility. Rigorous testing and quality paint coating ensure readiness and reliability from the moment it arrives.

FAQ's of RADIAL DRILL MACHINE 25MM:

Q: How does the 25mm Radial Drill Machine ensure accurate drilling in industrial settings?

A: The machine is engineered with a high-precision spindle, robust horizontal frame, and a stable heavy-duty base. With eight selectable spindle speeds and smooth variable speed control from 65 to 2000 RPM, it achieves optimal performance for different materials and operation requirements, assuring consistent drilling accuracy.

Q: What materials and applications is this radial drill machine suitable for?

A: This drill is optimized for metals such as mild steel (up to 25 mm), cast iron (up to 32 mm), and aluminum. It is ideal for drilling, boring, and tapping operations typically required in fabrication shops, manufacturing units, and industrial maintenance settings.

Q: When should I perform maintenance on the machine and what does it involve?

A: Routine maintenance is minimal and primarily involves manual lubrication of moving parts and checking for any loose fittings or wear on the V-belt. It is recommended to carry out these checks before each shift or as per the usage frequency to ensure optimal performance and longevity.

Q: Where can the Radial Drill Machine be installed?

A: This machine is floor-mounted, making it suitable for workshops, industrial production facilities, and fabrication environments. Its compact dimensions and sturdy base support flexible placement wherever electrical connections are available.

Q: What is the process for installing and starting the machine?

A: The radial drill machine is supplied fully assembled and tested. For installation, simply position it on a firm, level floor, connect it to a standard 3-phase 220V or 415V supply, and verify that the switch-gear and safety features are functional before starting operations.

Q: What are the key benefits of using this radial drill machine?

A: Key benefits include substantial productivity due to variable speeds, high-precision operation, robust construction for stability, ease of use with manual controls, integrated safety features, and versatile capability for customizations as per unique industrial needs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Drilling Machine' category

20 MM Drilling Machine Price : 36500.0 INR/Unit Minimum Order Quantity : 1 Product Type : Drilling Machine Color : Green Power Rating : 1 HP Frequency : 50 Hz Drive : Belt Drive Frame Type : Heavy Duty Cast Iron Base Power Source : Other, Electric Cooling System : Manual Technology : Other, Conventional Operating Temperature : 0 to 45C Voltage : 220V / 380V Surface Treatment : Other, Powder Coated Model No : 20MM/Drill Weight (kg) : 60 kg Accuracy : High Precision Lubricating System : Grease Packs Features : Robust Construction, Smooth Operation, Corrosion Resistant Motor Power : 0.75 KW / 1 HP Machine Type : Drilling Power : 0.75 kW Dimension (L*W*H) : 600 x 390 x 900 mm Operating Type : Manual Usage & Applications : Drilling holes in metal, wood, plastic; Shop floor and workshops Control System : Other, On/Off Switch Noise Level : <75 dB Production Capacity : 50 Machine/Month Computerized : No Condition : New

Send Inquiry

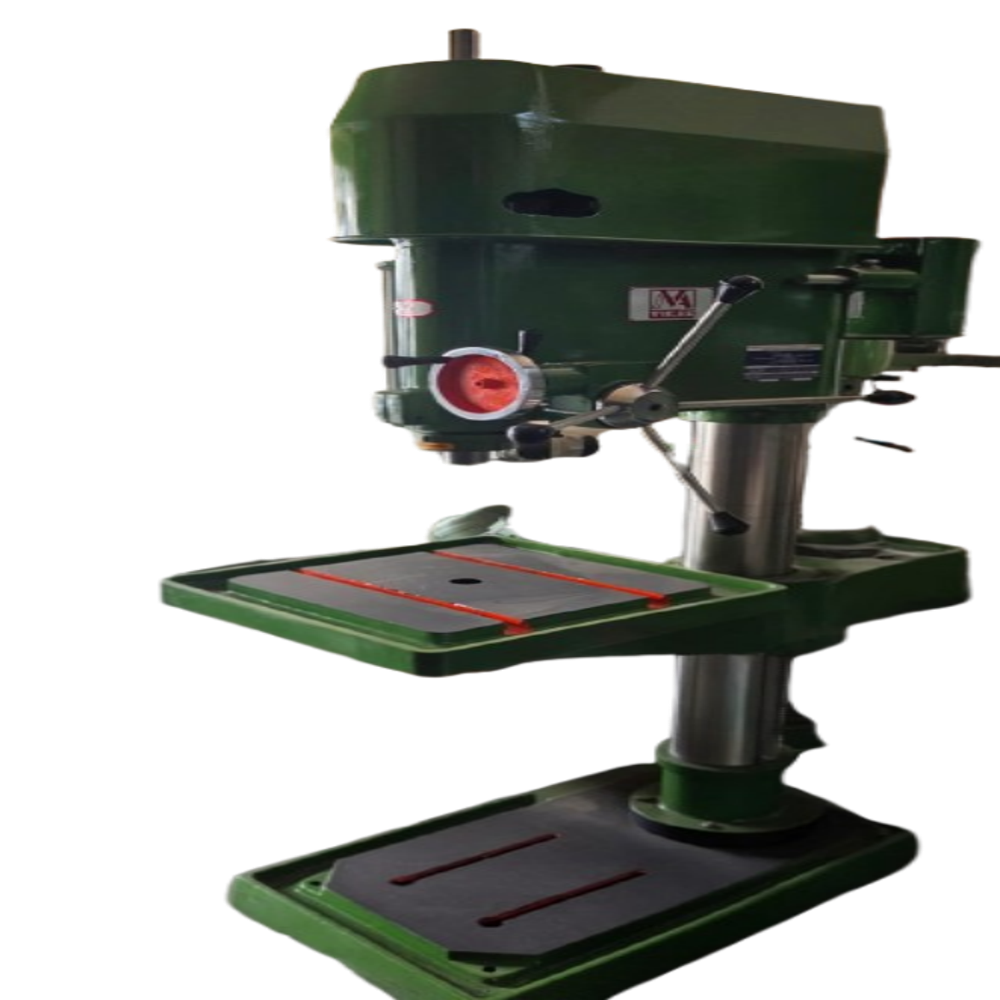

Heavy Duty 40mm Pillar Drill Machine Price : 68000.0 INR/Piece Minimum Order Quantity : 1 Product Type : Other, Pillar Drill Machine Color : Green Power Rating : 1.5 to 2 kW Frequency : 50 Hz Drive : VBelt Drive Frame Type : Heavy Rigid Frame Power Source : Other, Electric Cooling System : Manual Coolant Tray (Optional) Technology : Other, Conventional Mechanical Operating Temperature : 5C to 45C Voltage : 415 V Surface Treatment : Other, Paint Coated Model No : 40mm Heavy Duty Pillar Drill Weight (kg) : Approx. 350 kg Accuracy : High Drilling Precision Lubricating System : Grease Lubrication Features : Heavy Duty Structure, Robust Build, Easy Operation Motor Power : 2 HP Electric Motor Machine Type : Pillar/Column Drill Power : 2 HP Dimension (L*W*H) : 700 mm x 400 mm x 1650 mm (approx.) Operating Type : Manual Usage & Applications : Metal Drilling, Fabrication, Workshop Tool Control System : Other, Mechanical Lever with Handwheel Noise Level : Below 85 dB Production Capacity : Up to 40 mm Drilling in Mild Steel Connectivity Options : Direct Power Connection

Send Inquiry

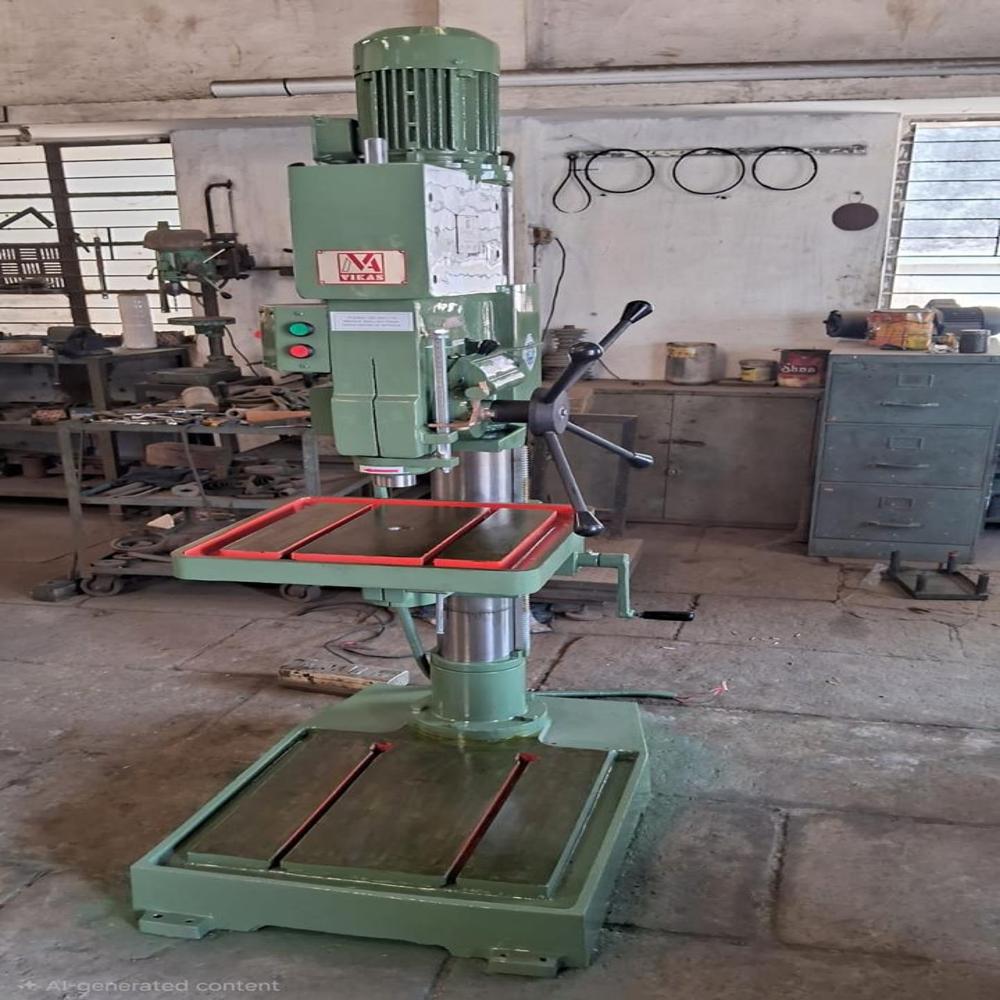

All Geared Pillar Drilling Machine Heavy Duty: Vikas Price : 185000.0 INR/Piece Minimum Order Quantity : 1 Product Type : Other, All Geared Pillar Drilling Machine Heavy Duty Color : Industrial Green Power Rating : 2.2 kW Frequency : 50 Hz Drive : All Geared Mechanical Drive Frame Type : Pillar Column Type Power Source : Other, Electric Cooling System : Provision for Coolant System Technology : Other, All Geared Mechanical Transmission Operating Temperature : 5C to 45C Voltage : 415 V (Three Phase) Surface Treatment : Other, Painted & Powder Coated Model No : Vikas (Brand/Model) Weight (kg) : Approximately 450600 kg Accuracy : High Drilling Accuracy Lubricating System : Centralized Lubrication System Features : All Geared, Sturdy Construction, Heavy Duty Operation, Adjustable Table Motor Power : 3 HP/2.2 kW Machine Type : Vertical Pillar Drilling Machine Power : 3 HP Dimension (L*W*H) : Approx. 900 x 600 x 2000 mm Operating Type : Other, Automatic/SemiAutomatic Usage & Applications : Drilling, Reaming, Tapping in workshops, production and maintenance units Control System : Other, Push Button Control Noise Level : < 80 dB Production Capacity : Designed for heavy duty, batch production Connectivity Options : Standard Electrical Connection
