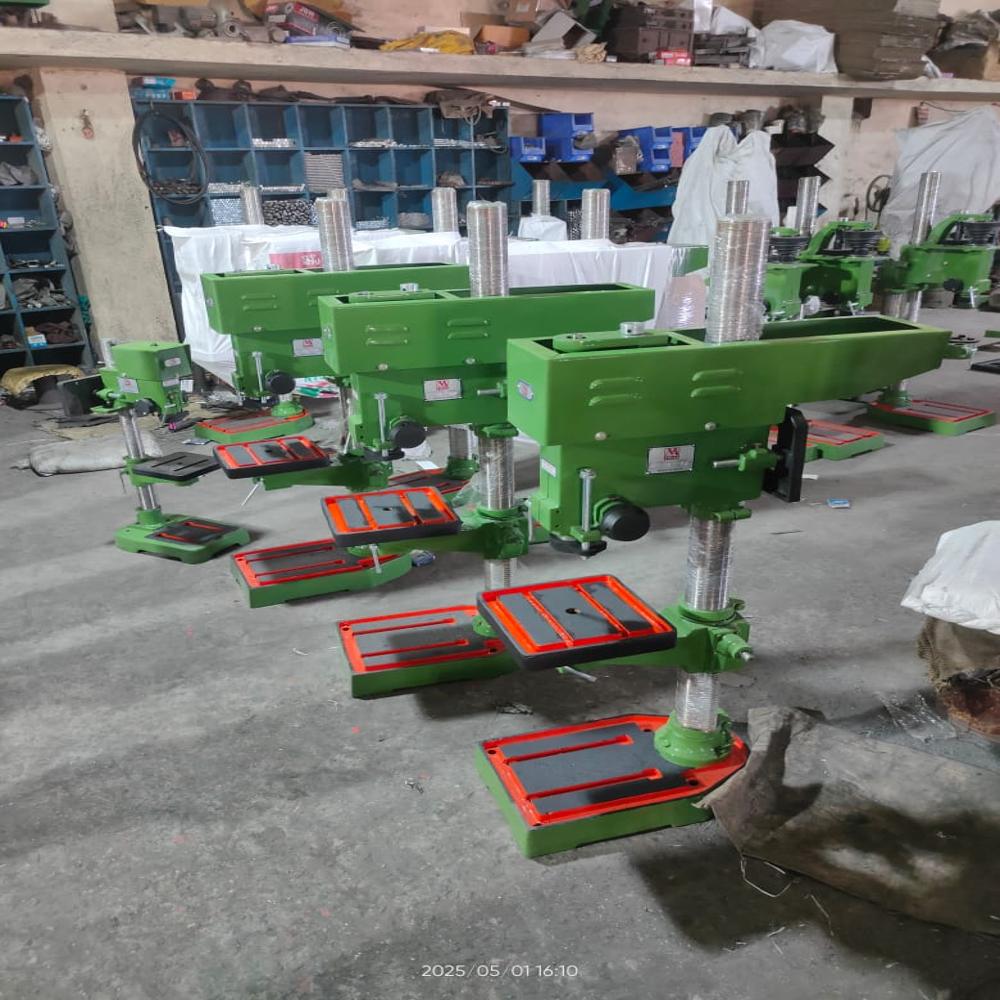

Bench Drill Machine
27500.0 INR/Piece
Product Details:
- Lubricating System Manual Lubrication
- Drive Belt Drive
- Control System Manual Lever Control
- Machine Type Bench Drill Machine
- Cooling System Manual cooling (no built-in system)
- Production Capacity 30-50 pieces per month
- Operating Temperature 5C to 45C
- Click to view more
X
Bench Drill Machine Price And Quantity
- 27500.0 INR/Piece
- 1 Piece
Bench Drill Machine Product Specifications
- Manual Lubrication
- Belt Drive
- Bench Drill Machine
- Conventional
- Green with Red Base Edges
- Bench Drill Machine
- Manual Lever Control
- 0.5 HP to 1 HP (typical range)
- Approx. 700mm x 300mm x 900mm
- Heavy Duty, High Stability, Adjustable Worktable, Easy Operation
- 5C to 45C
- 30-50 pieces per month
- Manual cooling (no built-in system)
- <75 dB
- Custom / As per manufacturer
- Semi-Automatic
- Rigid Cast Iron Frame
- Single/Three Phase supply
- Powder Coated
- High Precision (0.05 mm)
- 220V/415V
- Electric
- Drilling, Reaming, Tapping in metal workshops, fabrication units, educational institutes
- 0.5 HP to 1 HP
- Approx. 50 - 80 kg
- 50 Hz
- 75 mm
- 13 mm / 16 mm / 20 mm (based on model)
- Cast Iron
- 19 mm
- 230 mm x 230 mm
- 4 to 8 (depending on model)
- 250 mm
- 410 mm
- 190 mm
- 60 mm
- Overload Protection, Emergency Stop
- 350 mm x 250 mm
- 700 mm
- 100 mm
- MT2 or MT3
Product Description
Product Specifications
| Accuracy | High Precision |
| Condition | New |
| Features | Robust Construction, Smooth Operation, Corrosion Resistant |
| Cooling System | Manual |
| Voltage | 220V / 380V |
| Motor Power | 0.75 KW / 1 HP |
| Control System | Other, On/Off Switch |
| Production Capacity | 50 Machine/Month |
| Frame Type | Heavy Duty Cast Iron Base |
| Power Rating | 1 HP |
| Operating Temperature | 0 to 45C |
| Lubricating System | Grease Packs |
| Noise Level | <75 dB |
| Frequency | 50 Hz |
| Machine Type | Drilling |
| Drive | Belt Drive |
| Color | Green |
| Model No | 20MM/Drill |
| Product Type | Drilling Machine |
| Technology | Other, Conventional |
| Computerized | No |
| Power Source | Other, Electric |
| Automatic Grade | Semi-Automatic |
| Operating Type | Manual |
| Power | 0.75 kW |
| Surface Treatment | Other, Powder Coated |
| Dimension (L*W*H) | 600 x 390 x 900 mm |
| Weight (kg) | 60 kg |
| Usage & Applications | Drilling holes in metal, wood, plastic; Shop floor and workshops |
| Payment Terms | Cash in Advance (CID), Cheque, Cash Advance (CA) |
| Delivery Time | 1 Week |
| Sample Available | Yes |
| Sample Policy | Within a certain price range free samples are available |
| Main Export Market(s) | Middle East, Asia, Africa |
| Main Domestic Market | All India |
| Unit Type | Piece/Pieces |
| Returnable | No |
| Color | Green |
| Price | 36500.00 INR (Approx.) |
| Brand Name | VIKAS MACHINERY AND AUTOMOBILES |
| Mop | 1 |
| Price Type | fixed |
| Stock Quantity | 5 |
| Packsize | 1 |
| Currency | INR |
| Moq | 1 |
| Product Unit | 1 Piece/Pieces |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
| GSTIN | 0% |
Company Details
all types of machines like Band saw Machine, Hacksaw Machine, Milling Machine, welding machine, lathe machine, sheet metal machine, tapping machine, drilling machine, wood working machine, slotting machine, ITI fitter trade, ITI mechanical trade and others in specifications which suit all the industries and applications
Business Type
Exporter, Distributor, Supplier, Trading Company, Wholesaler
Employee Count
3
Establishment
1984
Working Days
To
GST NO
24ACMPM5005F1ZW
Payment Mode
Cash in Advance (CID)
Precision Engineering for Diverse Applications
Equipped with high accuracy of 0.05 mm and a rigid cast iron frame, this Bench Drill Machine delivers reliable results in drilling, reaming, and tapping applications. It's designed for use in metal workshops, fabrication units, and educational institutions. The adjustable worktable, various chuck sizes, and multiple spindle speeds additionally enable users to handle a broad range of tasks with consistent efficiency.
User-Centric Features and Robust Safety
This machine combines ease of operation with vital safety features such as overload protection and an emergency stop. Manual lever controls and manual lubrication provide the user precise control over the process, ensuring safety and facilitating consistent maintenance. The powder-coated finish ensures durability, while the low noise level (<75 dB) supports a comfortable working environment.
FAQ's of Bench Drill Machine:
Q: How do I change the spindle speed on this bench drill machine?
A: To adjust the spindle speed, change the position of the drive belt across the accessible pulleys. This machine offers between 4 to 8 spindle speeds, depending on the model. Refer to the user manual for the correct pulley arrangement to achieve your desired RPM.Q: What materials can the bench drill machine handle, and what is its drilling capacity?
A: This machine is engineered for drilling into metals, especially steel, with a maximum drilling capacity of 19 mm. It is also effective for reaming and tapping operations, making it well-suited for various metal fabrication tasks.Q: When should I apply lubrication and cooling during operation?
A: Lubrication is done manually and should be applied to moving parts before and after operation to ensure optimal performance. Cooling is also manual; apply cutting fluids as necessary during longer or heavy-duty drilling jobs to minimize heat and extend tool life.Q: Where is this bench drill machine typically installed?
A: It is most commonly mounted on sturdy workbenches in metal workshops, fabrication units, educational labs, and anywhere precise, stable drilling operations are required. Ensure the base is firmly secured for safety and optimal accuracy.Q: What are the benefits of the overload protection and emergency stop features?
A: Overload protection prevents motor damage from excessive loads, enhancing machine longevity. The emergency stop button allows operators to quickly halt the machine if an unsafe condition arises, ensuring user safety at all times.Q: How does the adjustable worktable enhance the drilling process?
A: The adjustable worktable, with 75 mm horizontal movement and 250 mm vertical travel, allows precise positioning of the workpiece. This versatility accommodates various sizes and shapes, facilitating accurate and repeatable drilling operations.Tell us about your requirement
